Same model may have multiple batches, images only for reference.

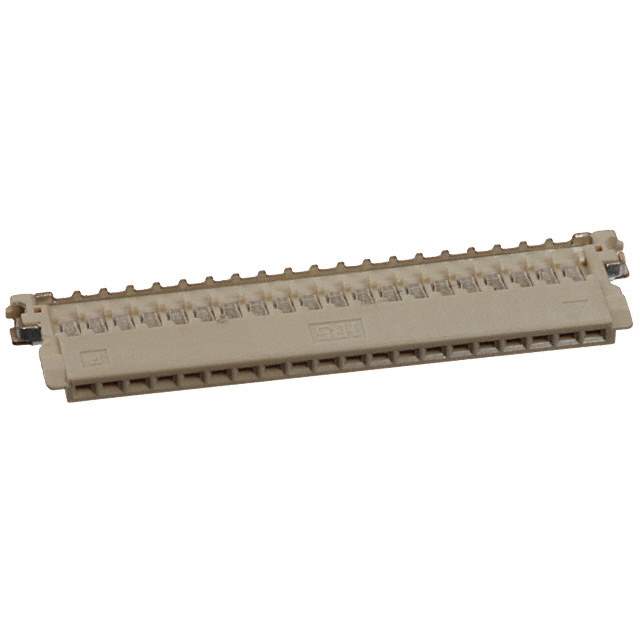

DF19G-20S-1SD(05) Real Image
Same model may have multiple batches, images only for reference.

DF19G-20S-1SD(05)

Part No DF19G-20S-1SD(05)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN PLUG 20POS IDC 40AWG GOLD / 20 Position Rectangular Plug Connector IDC Gold 40 AWG
Datasheet
DF19G-20S-1SD(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr Hirose Electric Co Ltd
Series DF19
Package Bulk
Product Status Obsolete
Connector Type Plug
Contact Type Female Socket
Number of Positions 20
Pitch 0.039" (1.00mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 40 AWG
Contact Finish Gold
Color Beige
Base Product Number DF19G
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names *DF19G-20S-1SD(05),DF19G20S1SD05,685-0025-0-05,H10764
Standard Package 100
Win Source Part Number 1232141-DF19G-20S-1SD(05)
Ultra Librarian 3D Model Ultra Librarian DF19G-20S-1SD(05) CAD Model

Description

The DF19 series connector is a rectangular connector that features 20 positions and a 0.039-inch pitch.

  • Connector Type: Rectangular Connector
  • Positions: 20
  • Pitch: 0.039 inch
  • Connector Type: Plug
  • Contact Type: Female Socket
  • Contact Finish: Gold
  • Wire Type: Ribbon Cable
  • Wire Gauge: 40 AWG
  • Mounting Type: Free Hanging (In-Line)
  • Packaging: Bulk
  • Status: Obsolete
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4051
  • Manufacturer: Hirose Electric Co Ltd.
