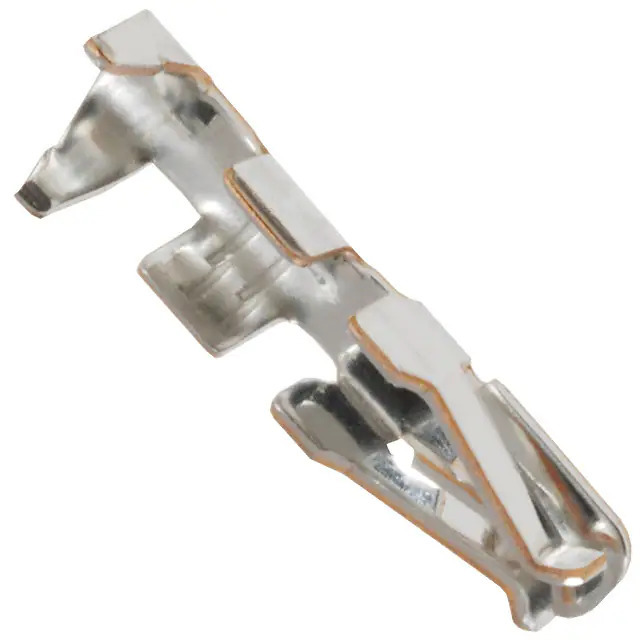

DF1B-2022SCF Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

DF1B-2022SCF

Part No DF1B-2022SCF
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN SOCKET 20-22AWG CRIMP TIN / Socket Contact Tin 20-22 AWG Crimp
Datasheet
DF1B-2022SCF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr Hirose Electric Co Ltd
Series DF1B
Package Tape & Reel (TR)
Product Status Active
Type -
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 20-22 AWG
Contact Finish Tin
Contact Finish Thickness -
Base Product Number DF1B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1362770-DF1B-2022SCF
Ultra Librarian 3D Model Ultra Librarian DF1B-2022SCF CAD Model

Description

The Hirose Electric Co Ltd DF1B is a rectangular connector contact designed for crimp termination.

  • Wire Gauge: 20-22 AWG
  • Contact Finish: Tin
  • Series: DF1B
