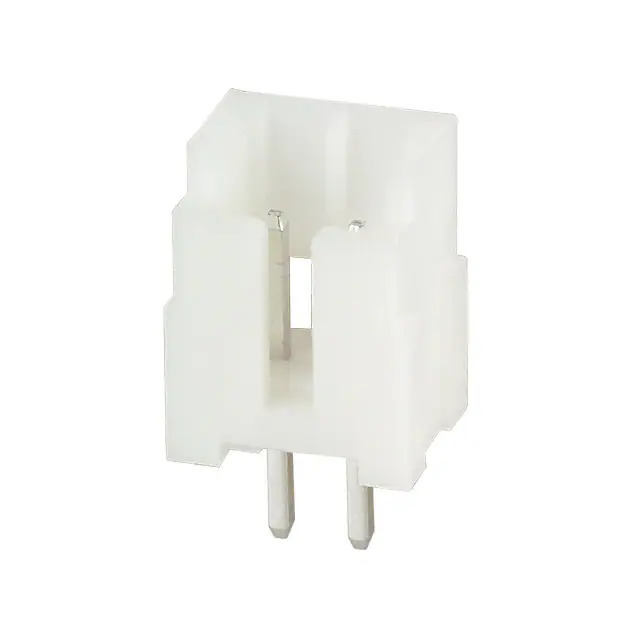

DF1BZ-2P-2.5DSA Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

DF1BZ-2P-2.5DSA

Part No DF1BZ-2P-2.5DSA
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 2.5MM / Connector Header Through Hole 2 position 0.098" (2.50mm)
Datasheet
DF1BZ-2P-2.5DSA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF1B
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 2
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.177" (4.50mm)
Contact Length - Post 0.142" (3.60mm)
Overall Contact Length 0.417" (10.60mm)
Insulation Height 0.374" (9.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Keying Slot
Temperature Range - Operating -35°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color White
Current Rating (Amps) -
Voltage Rating 250V
Mated Stacking Heights 14mm
Contact Finish Thickness - Post -
Applications -
Base Product Number DF1B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362547-DF1BZ-2P-2.5DSA
Ultra Librarian 3D Model Ultra Librarian DF1BZ-2P-2.5DSA CAD Model

Description

The DF1BZ-2P-2.5DSA is a male pin header connector from Hirose Electric Co Ltd. It is a part of the DF1B series and is designed for board to cable/wire connections.

  • Pitch: 0.098" (2.50mm)
  • Number of Positions: 2
  • Number of Rows: 1
  • Shrouded: Yes, 4 Walls
  • Contact Length Mating: 0.177" (4.50mm)
  • Contact Length Post: 0.142" (3.60mm)
  • Overall Contact Length: 0.417" (10.60mm)
  • Contact Material: Brass
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA), Nylon
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 250V
  • Temperature Range: -35°C to 85°C
  • Termination Style: Solder
  • Fastening Type: Push-Pull
  • Product Status: Active
  • Packaging: Bulk
