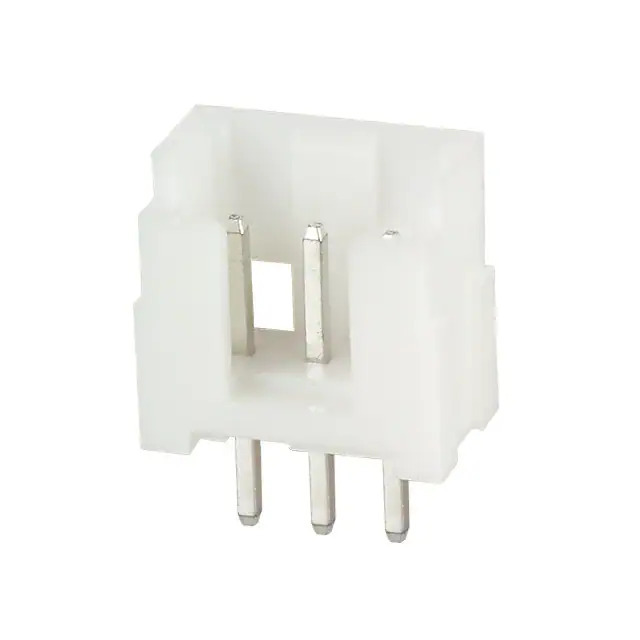

Same model may have multiple batches, images only for reference.

DF1BZ-3P-2.5DSA

Name: DF1BZ-3P-2.5DSA
Brand: Hirose Electric Co Ltd
SKU: 1362492
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF1BZ-3P-2.5DSA
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 3POS 2.5MM / Connector Header Through Hole 3 position 0.098" (2.50mm)
Datasheet	DF1BZ-3P-2.5DSA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF1B
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	3
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.177" (4.50mm)
Contact Length - Post	0.142" (3.60mm)
Overall Contact Length	0.417" (10.60mm)
Insulation Height	0.374" (9.50mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Keying Slot
Temperature Range - Operating	-35°C ~ 85°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	White
Current Rating (Amps)	-
Voltage Rating	250V
Mated Stacking Heights	14mm
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	DF1B
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1362492-DF1BZ-3P-2.5DSA
Ultra Librarian 3D Model	Ultra Librarian DF1BZ-3P-2.5DSA CAD Model

Alternative Products

Description

The DF1B is a header connector with male pins from Hirose Electric Co Ltd.

Connector Type: Header, Male Pins
Contact Type: Male Pin
Pitch - Mating: 0.098" (2.50mm)
Number of Positions: 3
Number of Rows: 1
Row Spacing: -
Mounting Type: Through Hole
Features: Shrouded - 4 Wall
Packaging: Bulk
Voltage Rating: 250V
Contact Finish: Tin
Operating Temperature: -35°C ~ 85°C
Style: Board to Cable/Wire
