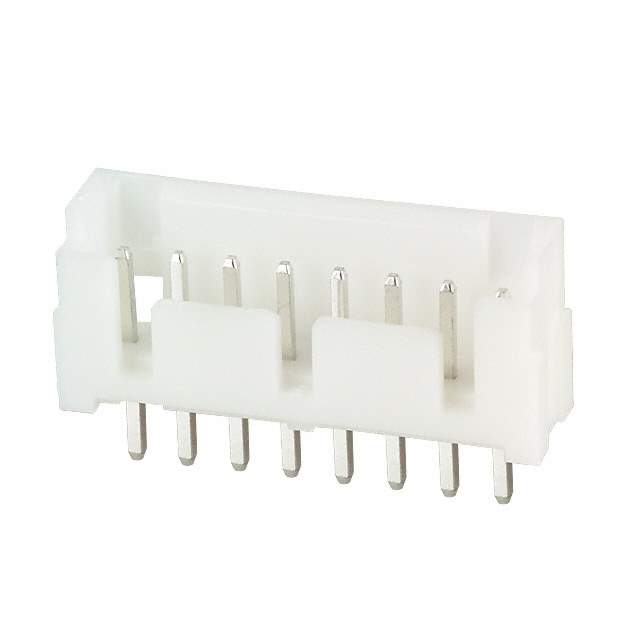

DF1BZ-8P-2.5DSA Real Image
Same model may have multiple batches, images only for reference.

DF1BZ-8P-2.5DSA

Part No DF1BZ-8P-2.5DSA
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 8POS 2.5MM / Connector Header Through Hole 8 position 0.098" (2.50mm)
Datasheet
DF1BZ-8P-2.5DSA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF1B
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 8
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.177" (4.50mm)
Contact Length - Post 0.142" (3.60mm)
Overall Contact Length 0.417" (10.60mm)
Insulation Height 0.374" (9.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Keying Slot
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color White
Voltage Rating 250V
Mated Stacking Heights 14mm
Base Product Number DF1B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names *DF1BZ-8P-2.5DSA,DF1BZ8P25DSA,H10988,541-2006-4-00
Standard Package 100
Win Source Part Number 1025245-DF1BZ-8P-2.5DSA
Ultra Librarian 3D Model Ultra Librarian DF1BZ-8P-2.5DSA CAD Model

Description

The Hirose Electric Co Ltd 1025245-DF1BZ-8P-2.5DSA is an 8-position header connector with a keying slot.

  • Series: DF1B
  • Mounting Type: Surface Mount
  • Pitch: 0.098" (2.50mm)
  • Supply and Demand Status: Limited
  • Standard Package: 100 pieces
  • Category: Connectors and Interconnects
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Current Rating: Not specified
  • Packaging: Bulk
  • Alternative Parts: 22-05-7085, 2132230-8
