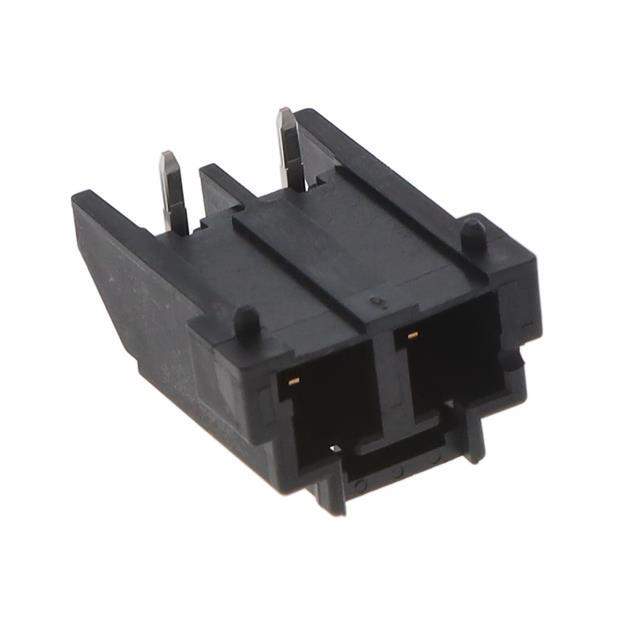

DF22R-2P-7.92DS(53)

Name: DF22R-2P-7.92DS(53)
Brand: Hirose Electric Co Ltd
SKU: 1338741
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF22R-2P-7.92DS(53)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN FFC BOTTOM 64POS 0.50MM R/A / Connector Header Through Hole, Right Angle 2 position 0.312" (7.92mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	EnerBee™ DF22
Package	Bag
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.312" (7.92mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.354" (9.00mm)
Contact Length - Post	0.146" (3.70mm)
Insulation Height	0.480" (12.20mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Finish - Post	Gold
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA) , Nylon
Features	Board Guide
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	1000VAC/DC
Contact Finish Thickness - Post	8.00µin (0.203µm)
Standard Package	100
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1338741-DF22R-2P-7.92DS(53)
Ultra Librarian 3D Model	Ultra Librarian DF22R-2P-7.92DS(53) CAD Model

Alternative Products

Description

The Hirose Electric EnerBee™ DF22 series is a 2 position board to cable/wire connector header with through hole, right angle and 0.312" (7.92mm) pitch-mating features.

Operating Temperature Range: -55°C to 85°C
Voltage Rating: 1000VAC/DC
Package: Bag
Standard Package: 100
Category: Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Current Rating (Amps): Varies by Wire Gauge
HTSUS: 8536.69.4040
