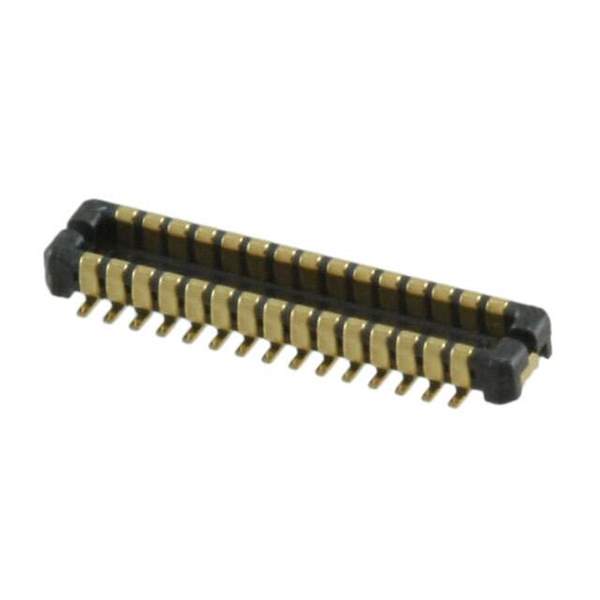

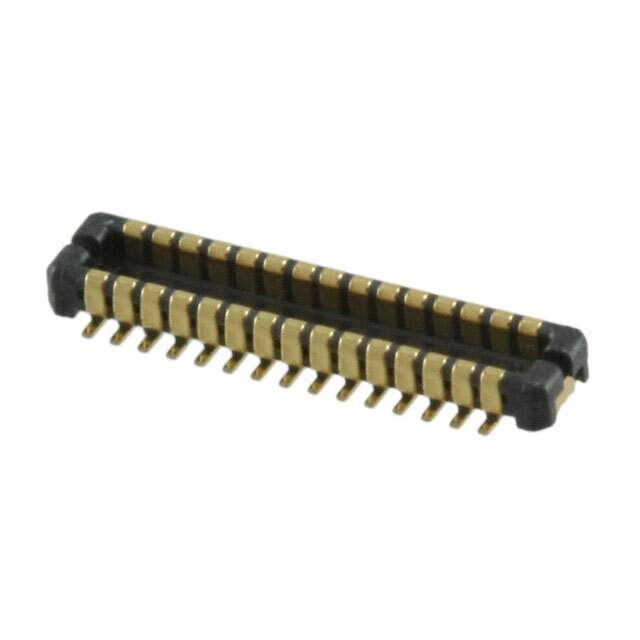

DF37C-30DP-0.4V(53)

Part No DF37C-30DP-0.4V(53)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 30POS 0.4MM SMD GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 30
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Contact Finish Gold
Contact Finish Thickness 2μin (0.05μm)
Mated Stacking Heights 0.98mm
Height Above Board 0.030" (0.75mm)
Win Source Part Number 1032979-DF37C-30DP-0.4V(53)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian DF37C-30DP-0.4V(53) CAD Model

Description

DF37C-30DP-0.4V(53) from Hirose Electric Co Ltd is a fine-pitch rectangular connector header designed for compact board-to-board interconnect applications where space, profile, and reliable signal routing are critical. With a 0.40 mm pitch, 30 positions, dual-row layout, and SMT mounting, it is well suited for portable electronics, industrial control modules, communication devices, embedded assemblies, and other high-density PCB designs. The gold contact finish supports dependable mating performance in precision electronic systems. Based on the provided status, this part is listed as Active, which is favorable for ongoing design consideration, although engineers should still confirm long-term availability directly with the manufacturer or authorized distribution sources. RoHS compliance information is not explicitly provided in the supplied specifications, so compliance status should be treated as information not available pending official datasheet or manufacturer confirmation. For procurement teams, balanced supply-demand status and reel packaging make it relevant for volume assembly planning.
