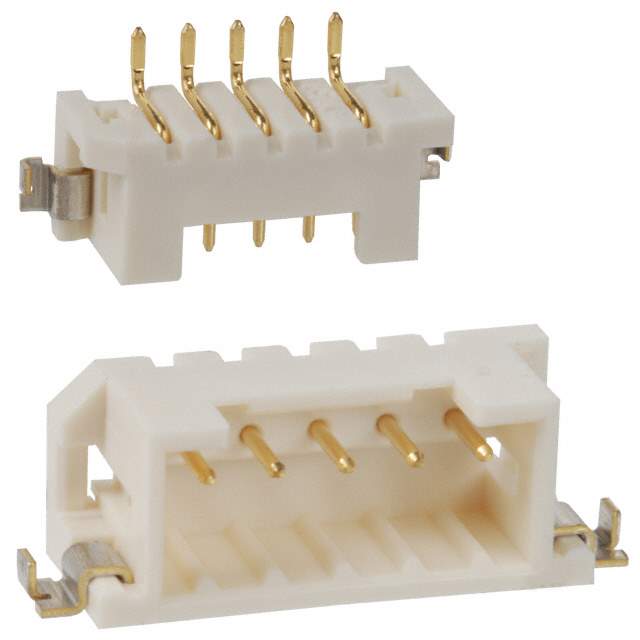

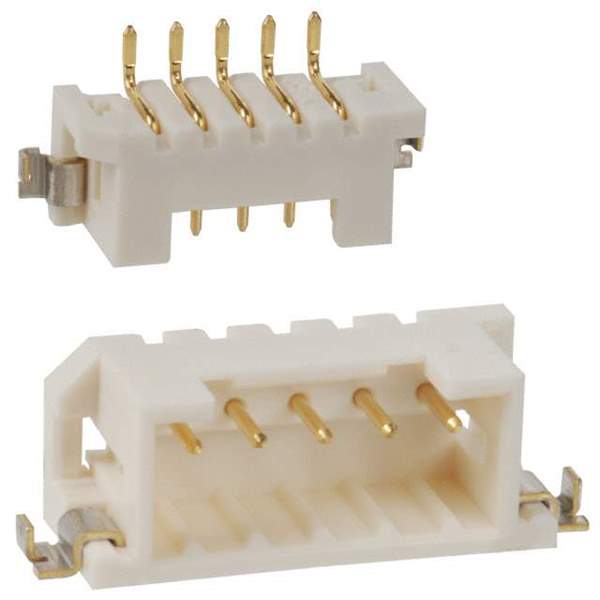

DF3DZ-5P-2H(51) Real Image
Same model may have multiple batches, images only for reference.

DF3DZ-5P-2H(51)

Part No DF3DZ-5P-2H(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description HEADER STRAIGHT 2MM R/A / Conn Shrouded Header HDR 5 POS 2mm Solder RA SMD Reel
Datasheet
DF3DZ-5P-2H(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Series DF3
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 5
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.220" (5.60mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Operating Temperature Range -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating 3A
Win Source Part Number 772591-DF3DZ-5P-2H(51)
Popularity Medium
Supply and Demand Status Limited
Family Name DF3DZ
Introduction Date January 21, 2003
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian DF3DZ-5P-2H(51) CAD Model

Description

The Hirose Electric Co Ltd DF3 Header Connector is a 5-position, surface mount, right-angle connector with a pitch of 0.079" (2.00mm).

  • Pitch: 0.079" (2.00mm)
  • Solder Retention: Yes
  • Fastening Type: Push-pull
  • Contact Finish: Gold
  • Category: Connectors, Interconnects
  • Supply and Demand Status: Limited
  • Status: Obsolete/End of Life
  • Insulation Material: Polyamide (PA), nylon
  • Insulation Color: Beige
