Same model may have multiple batches, images only for reference.

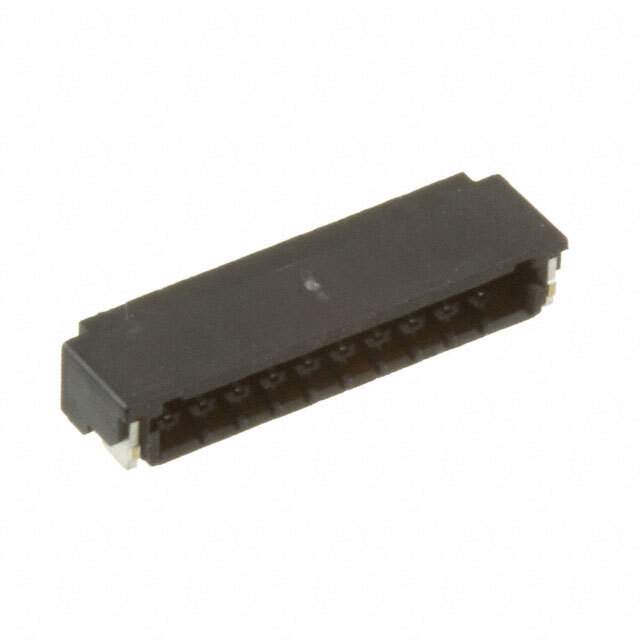

DF52-10S-0.8H(21) Real Image
Same model may have multiple batches, images only for reference.

DF52-10S-0.8H(21)

Part No DF52-10S-0.8H(21)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Hirose Electric Co Ltd
Series DF52
Package Tape & Reel
Connector Type Socket
Contact Type Non-Gendered
Style Board to Cable/Wire
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.031" (0.80mm)
Number of Rows 1
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Finish - Mating Tin
Insulation Color Black
Insulation Height 0.069" (1.75mm)
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Glow Wire Compliant, Solder Retention
Current Rating (Amps) 1.5A
Voltage Rating 100V
Insulation Material Polyamide (PA), Nylon, Halogen Free
Contact Material Copper Alloy
Base Product Number DF52
Other Names 668-0008-6-21,H125102CT,H125102DKR,H125102TR
Standard Package 5,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293098-DF52-10S-0.8H(21)
Ultra Librarian 3D Model Ultra Librarian DF52-10S-0.8H(21) CAD Model

Description

The Hirose Electric Co Ltd 1293098-DF52-10S-0.8H(21) is a high-quality connector with 10 positions.

  • Series: DF52
  • Features: Glow Wire Compliant, Solder Retention
  • Connector Type: Socket
  • Contact Type: Non-Gendered
  • Positions Loaded: All
  • Rows: 1
  • Termination: Solder
  • Fastening Type: Detent Lock
  • Package: Tape and Reel
  • Contact Material: Copper Alloy
  • Voltage Rating: 100V
  • Insulation Material: Polyamide (PA), Nylon, Halogen-Free
  • Mounting Type: Surface Mount, Right-Angle
  • Insulation Height: 0.069 inches (1.75mm)
  • Temperature Range: -40°C to 85°C
