Same model may have multiple batches, images only for reference.

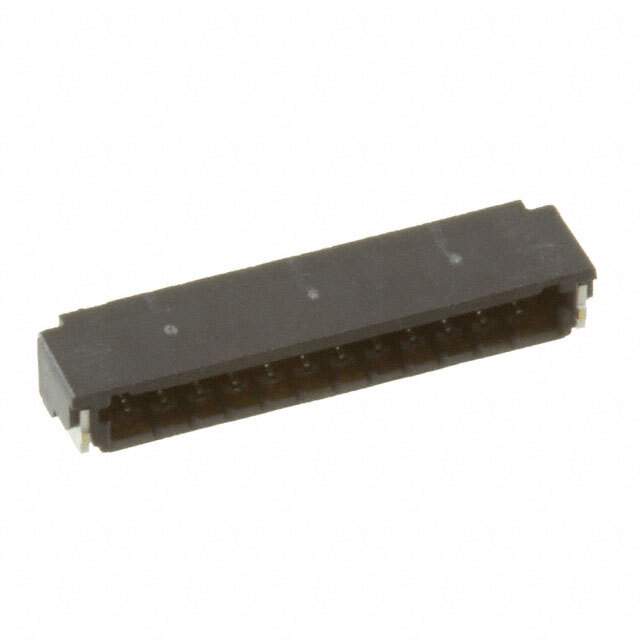

DF52-12S-0.8H(21) Real Image
Same model may have multiple batches, images only for reference.

DF52-12S-0.8H(21)

Part No DF52-12S-0.8H(21)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN SOCKET 12P 0.031 TIN SMD RA / 12 Position Socket Connector 0.031" (0.80mm) Surface Mount, Right Angle Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Hirose Electric Co Ltd
Series DF52
Package Tape & Reel
Connector Type Socket
Contact Type Non-Gendered
Style Board to Cable/Wire
Number of Positions 12
Number of Positions Loaded All
Pitch - Mating 0.031" (0.80mm)
Number of Rows 1
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Finish - Mating Tin
Insulation Color Black
Insulation Height 0.069" (1.75mm)
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Glow Wire Compliant, Solder Retention
Current Rating (Amps) 1.5A
Voltage Rating 100V
Insulation Material Polyamide (PA) , Nylon, Halogen Free
Contact Material Copper Alloy
Base Product Number DF52
Standard Package 5,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337209-DF52-12S-0.8H(21)
Ultra Librarian 3D Model Ultra Librarian DF52-12S-0.8H(21) CAD Model

Description

The DF52 series is a range of rectangular connectors used for headers, receptacles, and female sockets.

  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Number of Positions: 12
  • Pitch: 0.031" (0.80mm)
  • Number of Rows: 1
  • Mounting Type: Surface Mount, Right Angle
  • Termination: Solder
  • Fastening Type: Detent Lock
  • Contact Finish - Mating: Tin
  • Contact Material: Copper Alloy
  • Insulation Material: Polyamide (PA), Nylon
  • Voltage Rating: 100V
  • Current Rating (Per Contact): 1.5A
  • Flammability Rating: UL94 V-0
  • Row Spacing - Mating: 0.125" (3.18mm)
  • Contact Length - Post: 0.138" (3.50mm)
  • Insulation Height: 0.069" (1.75mm)
  • Operating Temperature: -40°C ~ 85°C
