Same model may have multiple batches, images only for reference.

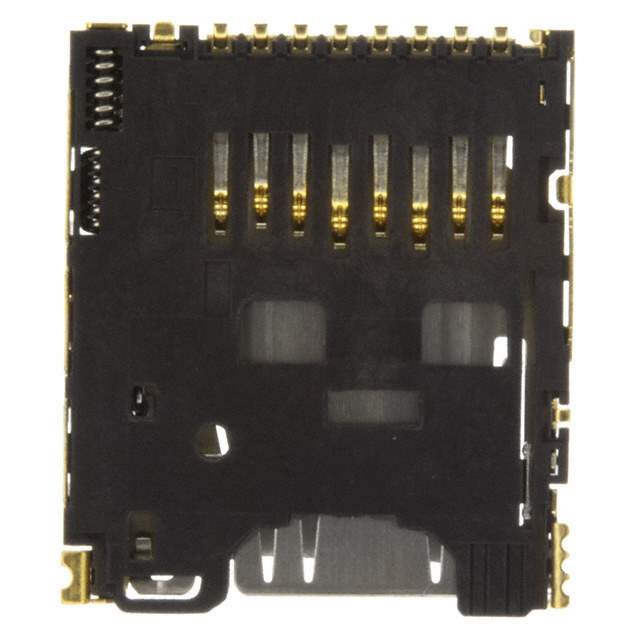

DM3AT-SF-PEJ Real Image
Same model may have multiple batches, images only for reference.

DM3AT-SF-PEJ

Part No DM3AT-SF-PEJ
Manufacturer Hirose Electric Co Ltd
Catalog Memory Connectors - PC Card Sockets
Description CONN MICRO SD CARD PUSH-PUSH R/A / 10 (8 + 2) Position Card Connector Secure Digital - microSD™ Surface Mount, Right Angle Gold
Datasheet
DM3AT-SF-PEJ Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Memory Connectors>PC Card Sockets
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Product Status Obsolete
Card Type Secure Digital - microSD™
Number of Positions 10 (8 + 2)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Mounting Surface Mount, Right Angle
Features Switch
Height Above Board 0.066" (1.68mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Base Product Number DM3AT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number *DM3AT-SF-PEJ,*DM3AT-SF-PEJ(40),HR1939CT,DM3ATSFPEJ,HR1939TR,HR1939DKR
Standard Package 1,500
Win Source Part Number 1332010-DM3AT-SF-PEJ
Ultra Librarian 3D Model Ultra Librarian DM3AT-SF-PEJ CAD Model

Description

The Hirose Electric Co Ltd DM3AT-SF-PEJ is a 10-position (8+2) Secure Digital - microSD™ card socket connector with a switch.

  • Positions: 10 (8+2)
  • Card Type: Secure Digital - microSD™
  • Features: Switch
  • Contact Finish: Gold
  • Mounting: Surface
  • Orientation: Right Angle
  • Type: Connector and Ejector
  • Height Above Board: 0.066" (1.68mm)
  • Standard Package: 1,500
  • Insertion and Removal Method: Push-In and Push-Out
  • Mounting Feature: Normal, Standard-Top
  • ECCN: EAR99
  • Status: Obsolete
  • MSL: 1 (unlimited)
