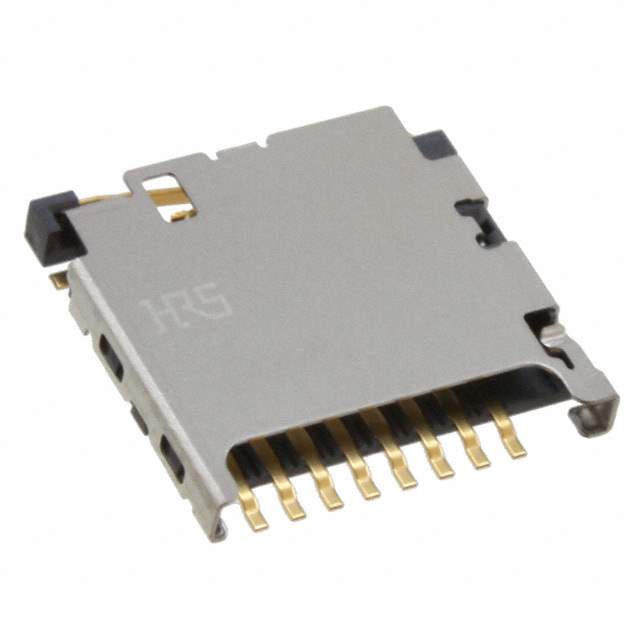

DM3D-SF Real Image
Same model may have multiple batches, images only for reference.

DM3D-SF

Part No DM3D-SF
Manufacturer Hirose Electric Co Ltd
Catalog Memory Connectors - PC Card Sockets
Description microSD Card Connectors | CONN MICRO SD CARD PUSH-PULL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel
Card Type Secure Digital - microSD
Number of Positions 10 (8 + 2)
Connector Type Connector
Insertion, Removal Method Push In, Pull Out
Mounting Style SMT, Right Angle
Features Switch
Height Above Board 0.061" (1.55mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 759027-DM3D-SF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DM3D-SF CAD Model

Description

The DM3D-SF is a connector manufactured by Hirose Electric Co Ltd.

  • Connector Type: Connector
  • Positions: 10 (8 + 2)
  • Mounting Style: Right Angle
  • Mounting: Surface Mount Device (SMT)
  • Height Above Board: 0.061" (1.55mm)
  • Card Type: secure digital - microSD
  • Insertion and Removal: Push in, Pull out
  • Switch Feature: Yes
  • Connector Contacts Finish: Gold
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
