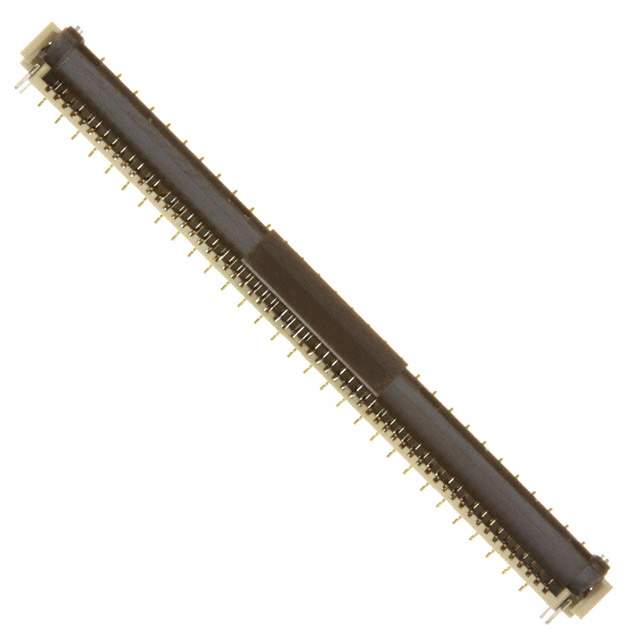

FH12-60S-0.5SV(55) Real Image
Same model may have multiple batches, images only for reference.

FH12-60S-0.5SV(55)

Part No FH12-60S-0.5SV(55)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 60POS 0.5MM SMD / 60 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series FH12
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FFC, FPC
Mounting Type Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 60
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.142" (3.60mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Brown
Mating Cycles 20
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1338303-FH12-60S-0.5SV(55)
Ultra Librarian 3D Model Ultra Librarian FH12-60S-0.5SV(55) CAD Model

Description

The Hirose Electric Co Ltd 1338303-FH12-60S-0.5SV(55) is a flat flexible connector assembly with a pitch of 0.020" (0.50mm) and 60 positions.

  • Pitch: 0.020" (0.50mm)
  • Positions: 60
  • Mounting Type: Surface Mount
  • Mounting Feature: Vertical
  • Termination: Solder
  • Contact Finish: Gold
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Height Above Board: 0.142" (3.60mm)
  • Mated Stacking Height: 4mm
  • RoHS: Compliant
  • Standard Package: 1,000
