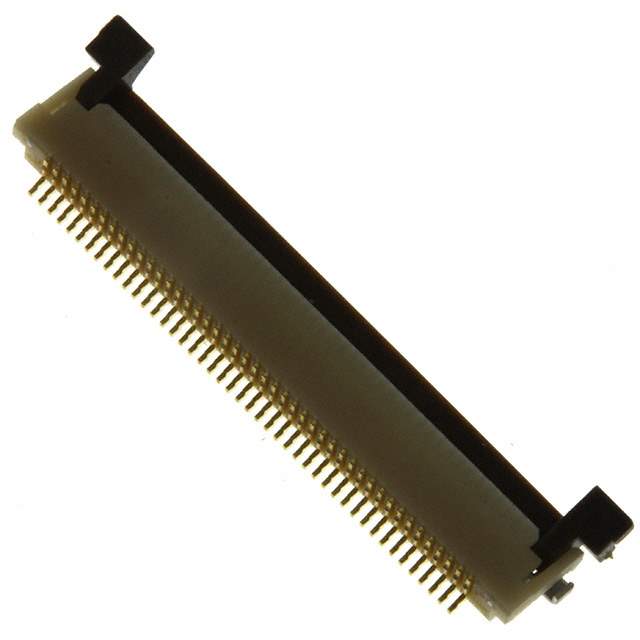

The FH12A-45S-0.5SH(55) is a surface mount, right angle connector manufactured by Hirose Electric Co Ltd.

• Mounting Type: surface mount, right angle
• Feature: zero insertion force (ZIF)
• Mechanism: flip lock mechanism
• Positions: 45
• Pitch: 0.020" (0.50mm)
• Suitable for: FFC and FPC flat flex types with a thickness of 0.30mm
• Contact Finish: gold-plated
• Voltage Rating: 50V
• Current Rating: 0.5A
• Housing Material: polyamide (PA) nylon with a UL94 V-0 flammability rating and a beige color
• Actuator Material: polyphenylene sulfide (PPS) with a brown color
• Height Above Board: 0.079" (2.00mm)
• Temperature Range: -40°C to 85°C
• Mating Cycle: 20
• Widely Used In: connectors and interconnects
