Same model may have multiple batches, images only for reference.

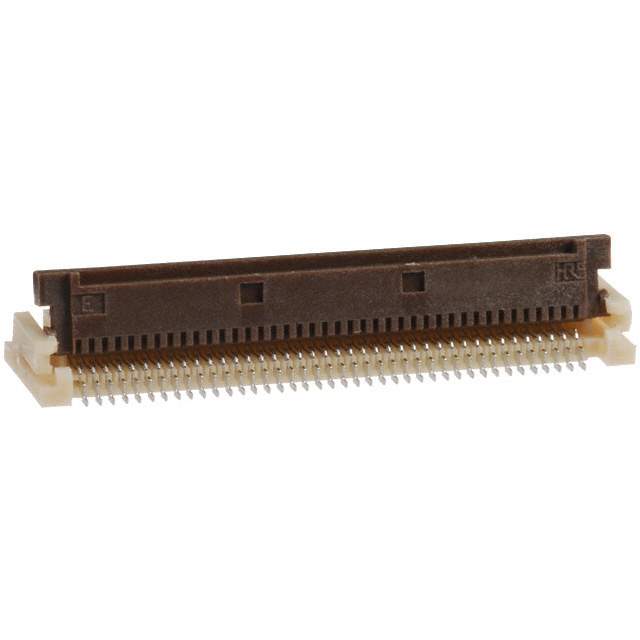

FH16-80S-0.3SHW Real Image
Same model may have multiple batches, images only for reference.

FH16-80S-0.3SHW

Part No FH16-80S-0.3SHW
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description FFC & FPC Connectors 80POS 0.30MM R/A CONN FPC BOTTOM
Datasheet
FH16-80S-0.3SHW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 3000004-FH16-80S-0.3SHW
Manufacturer Hirose Electric
Category FFC & FPC Connectors
Series FH16
Type FFC & FPC Connectors
Pitch 0.012" (0.30mm)
Features Pick and Place Cap, Zero Insertion Force (ZIF)
Termination Solder
Voltage Rating 30V
Ultra Librarian 3D Model Ultra Librarian FH16-80S-0.3SHW CAD Model

Description

The FH16 series of FFC & FPC connectors from Hirose Electric offer a pitch of 0.012" (0.30mm) and a zero insertion force (ZIF) feature for easy insertion and removal of flexible flat cables. Hirose Electric

  • Series: FH16
  • Type: FFC & FPC connectors
  • Pitch: 0.012" (0.30mm)
  • Feature: Zero insertion force (ZIF)
  • Available With: Pick and place cap
  • Termination: Solder
  • Voltage Rating: 30V
  • Reliability: Highly reliable
