Same model may have multiple batches, images only for reference.

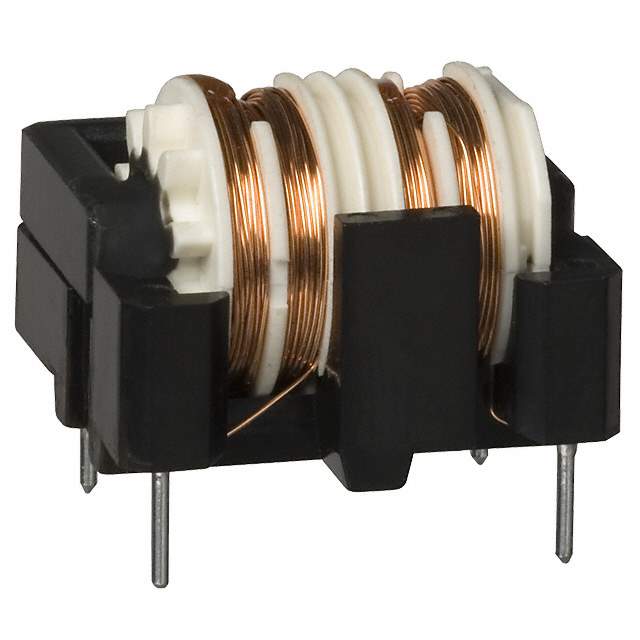

LF2115NP-223 Real Image
Same model may have multiple batches, images only for reference.

LF2115NP-223

Part No LF2115NP-223
Manufacturer Sumida America Components Inc.
Catalog Common Mode Chokes
Description CMC 22MH 400MA 2LN TH / 22 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 400mA DCR 2.04Ohm
Datasheet
LF2115NP-223 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Sumida America Components Inc.
Packaging Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 22 mH @ 1 kHz
Current Rating (Max) 400mA
DC Resistance (DCR) (Max) 2.04Ohm
Mounting Through Hole
Size / Dimension 0.827" L x 0.827" W (21.00mm x 21.00mm)
Height (Max) 0.669" (17.00mm)
Case / Package Vertical, 4 PC Pin
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 308-1357
Standard Package 100
Win Source Part Number 1328202-LF2115NP-223
Ultra Librarian 3D Model Ultra Librarian LF2115NP-223 CAD Model

Description

The LF2115NP-223 is a common mode choke from Sumida America Components Inc. that is suitable for use in power line filters.

  • Manufacturer: Sumida America Components Inc.
  • Product Name: LF2115NP-223
  • Application: Power Line Filters
  • Package: Vertical, 4 PC Pin
  • Size: 0.827" L x 0.827" W (21.00mm x 21.00mm)
  • Height (Max): 0.669" (17.00mm)
  • Inductance: 22 mH @ 1 kHz
  • DC Resistance (DCR): 2.04Ohm
  • Current Rating: Up to 400mA
  • Mounting: Through-Hole
  • ROHS3: Compliant
