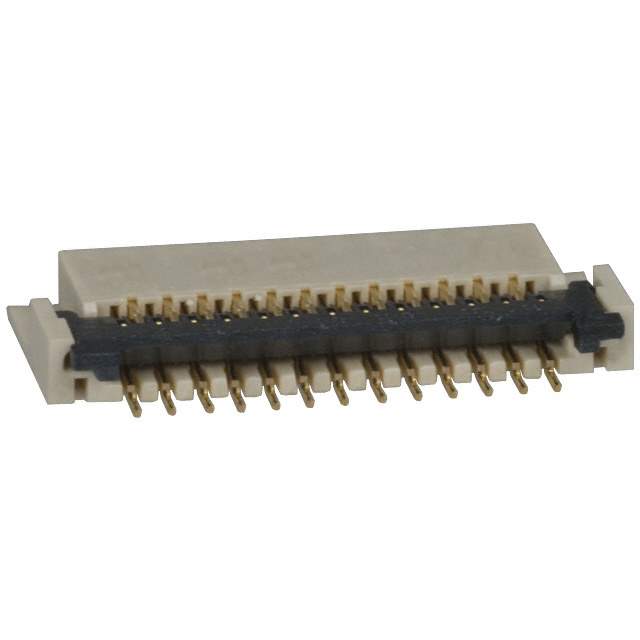

FH23-25S-0.3SHW(10) Real Image
Same model may have multiple batches, images only for reference.

FH23-25S-0.3SHW(10)

Part No FH23-25S-0.3SHW(10)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 25POS 0.30MM R/A
Datasheet
FH23-25S-0.3SHW(10) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 25
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.049" (1.25mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Features Low Insertion Force (LIF)
Voltage Rating 30V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.3A
Housing Color Beige
Actuator Color Black
Mating Cycles 10
Win Source Part Number 1038736-FH23-25S-0.3SHW(10)
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian FH23-25S-0.3SHW(10) CAD Model

Description

The Hirose Electric Co Ltd FH23-25S-0.3SHW(10) connector is a 25-position solder termination connector with a flip lock locking feature.

  • Pitch: 0.012" (0.30mm)
  • Mounting: surface mount, right angle
  • Voltage Rating: 30V
  • Current Rating: 0.3A
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Height Above Board: 0.049" (1.25mm)
  • Suitable for: FPC flat flex type
  • Contact Finish: gold
  • Popularity: medium
