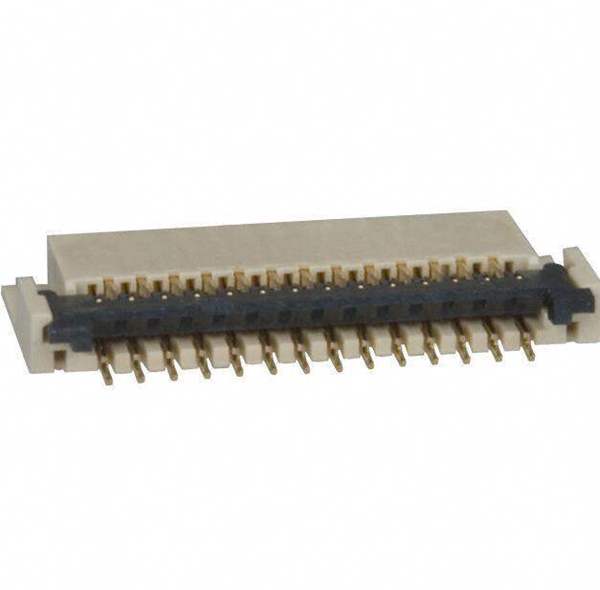

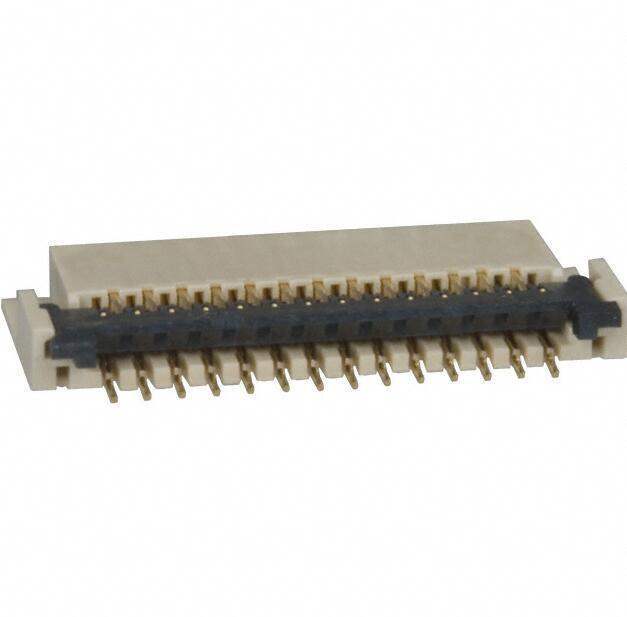

FH23-27S-0.3SHW(05)Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FH23-27S-0.3SHW(05)

Part No FH23-27S-0.3SHW(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 27POS 0.3MM R/A
Datasheet
FH23-27S-0.3SHW(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1197454-FH23-27S-0.3SHW(05)
Win Source Part Number Cross
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Series FH23
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 27
Termination Solder
FFC, FCB Thickness 0.20mm
Ultra Librarian 3D Model Ultra Librarian FH23-27S-0.3SHW(05) CAD Model

Description

The FH23 series FFC, FPC (Flat Flexible) Connector Assemblies from Hirose Electric Co Ltd are a reliable choice for your electronic projects.

  • Positions: 27
  • Termination Type: Solder
  • Package Options: Tape & Reel (TR), Cut Tape (CT), and Digi-Reel®
  • FPC Type: Flat Flex
  • Contacts: Bottom
  • FFC, FCB Thickness: 0.20mm
  • Mounting Type: Surface Mount, Right Angle
  • Status: Active
