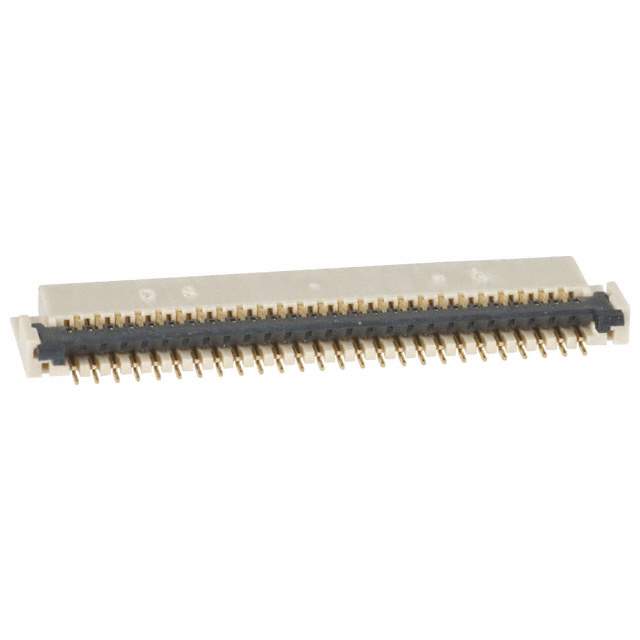

Same model may have multiple batches, images only for reference.

FH23-51S-0.3SHW(05)

Name: FH23-51S-0.3SHW(05)
Brand: Hirose Electric Co Ltd
SKU: 1059118
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FH23-51S-0.3SHW(05)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	FFC FPC Connectors Horizontal Mounting Angle Beige 0.3 mm - Pitch 51 Positions
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mounting	SMD (SMT)
Termination	SMD/SMT
Connector Type	Receptacle
Contact Material	Bronze
Contact Pitch	300 µm
Contact Plating	Gold
Contact Resistance	100 mΩ
Contact Voltage Rating (AC)	30 V
Contact Voltage Rating (DC)	30 V
Current Rating	300 mA
Flammability Rating	UL94 V-0
Height	1.25 mm
Housing Material	Polymer
Insulation Resistance	50 MΩ
Lead Free	Yes
Lead Pitch	300 µm
Length	17.8 mm
Maximum Operating Temperature	85 °C
Min Operating Temperature	-55 °C
Number of Contacts	51
Number of Positions	51
Packaging	Tape & Reel (TR)
Pitch	300 µm
RoHS	Compliant
Voltage Rating	30 V
Width	4.8 mm
Win Source Part Number	1059118-FH23-51S-0.3SHW(05)
Categories	FFC,FPC(FlatFlexible)Connectors
Manufacturer	Hirose Electric Co Ltd
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian FH23-51S-0.3SHW(05) CAD Model

Alternative Products

Description

The FH23-51S-0.3SHW(05) is a 51-position receptacle connector manufactured by Hirose Electric Co Ltd.

Product: FH23-51S-0.3SHW(05)
Manufacturer: Hirose Electric Co Ltd
Positions: 51
Connector Type: FFC/FPC
Pitch: 300 µm
Contact Material: Bronze
Contact Plating: Gold
Voltage Rating: 30 V
Current Rating: 300 mA
RoHS Compliant: Yes
Flammability Rating: UL94 V-0
