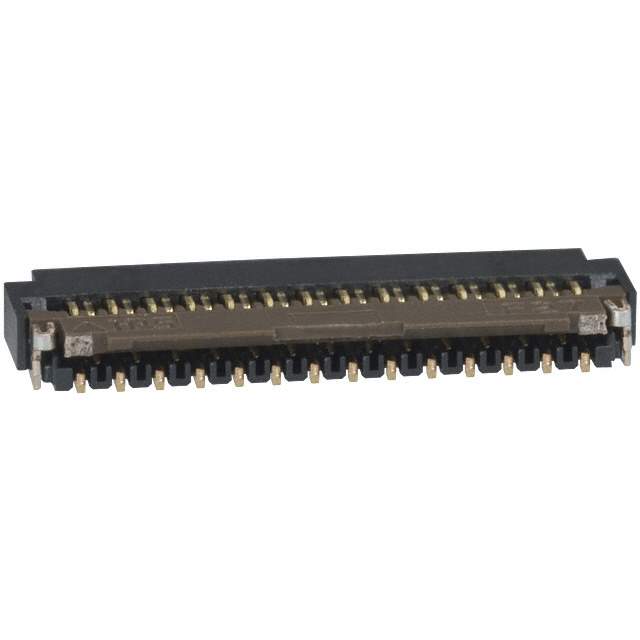

FH26-27S-0.3SHW(58)

Get a Quote

Part No	FH26-27S-0.3SHW(58)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC BOTTOM 27POS 0.30MM R/A / 27 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet	FH26-27S-0.3SHW(58) Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Hirose Electric Co Ltd
Series	FH26
Package	Tape & Reel (TR)
Product Status	Obsolete
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	27
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.039" (1.00mm)
Locking Feature	Flip Lock
Cable End Type	Tapered
Contact Material	Phosphor Bronze
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Features	Zero Insertion Force (ZIF)
Voltage Rating	30V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.2A
Housing Color	Black
Actuator Color	Brown
Mating Cycles	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	580-0204-0-58
Standard Package	5,000
Win Source Part Number	1059121-FH26-27S-0.3SHW(58)
Ultra Librarian 3D Model	Ultra Librarian FH26-27S-0.3SHW(58) CAD Model

Alternative Products

Description

The FH26-27S-0.3SHW(58) is a connector component manufactured by Hirose Electric Co Ltd.

Product: FH26-27S-0.3SHW(58)
Manufacturer: Hirose Electric Co Ltd
Series: FH26
Positions: 27
Pitch: 0.012" (0.30mm)
Features: Zero insertion force (ZIF)
Voltage Rating: 30V
Housing Material: Liquid crystal polymer (LCP)
Halogen-Free: Yes
Material Flammability Rating: UL94 V-0
Packaging: Tape and reel
Mounting Type: Surface mount, right-angle
Win Source Part Number: 1059121-FH26-27S-0.3SHW(58)
Description: A versatile connector component used in various electronic devices and systems.
