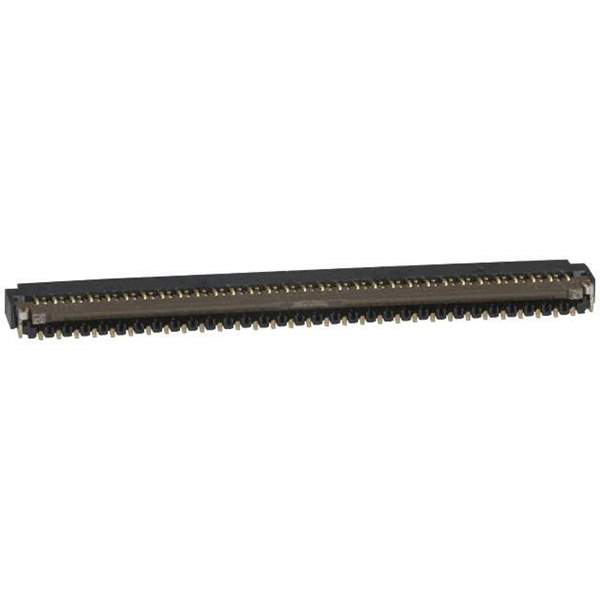

FH26-61S-0.3SHW(05) Real Image
Same model may have multiple batches, images only for reference.

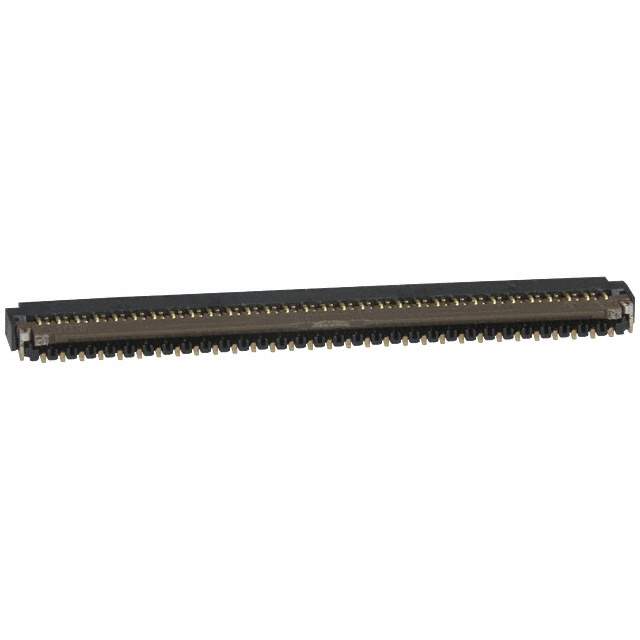

FH26-61S-0.3SHW(05)

Part No FH26-61S-0.3SHW(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 61POS 0.30MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Reel
Part Status Obsolete (End Of Life)
Flat Flex Type FPC
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 61
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Housing Color Black
Actuator Color Brown
Mating Cycles 10
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804052-FH26-61S-0.3SHW(05)
Ultra Librarian 3D Model Ultra Librarian FH26-61S-0.3SHW(05) CAD Model

Description

The Hirose Electric Co Ltd FH26-61S-0.3SHW(05) is a surface mount, right angle connector with a zero insertion force (ZIF) feature.

  • Positions: 61
  • Pitch: 0.012" (0.30mm)
  • Termination: solder
  • Contact Material: phosphor bronze with gold finish
  • Voltage Rating: 30V
  • Height Above Board: 0.039" (1.00mm)
  • Compatible With: flat flex type FPC
  • Housing Material: liquid crystal polymer (LCP)
  • Actuator Material: polyamide (PA), nylon
  • Material Flammability Rating: UL94 V-0
  • Color: black
  • Mating Cycles: 10
  • Status: obsolete (end of life)
  • Manufacturer Pack Quantity: 5,000
  • Current Rating (amps): 0.2A
