Same model may have multiple batches, images only for reference.

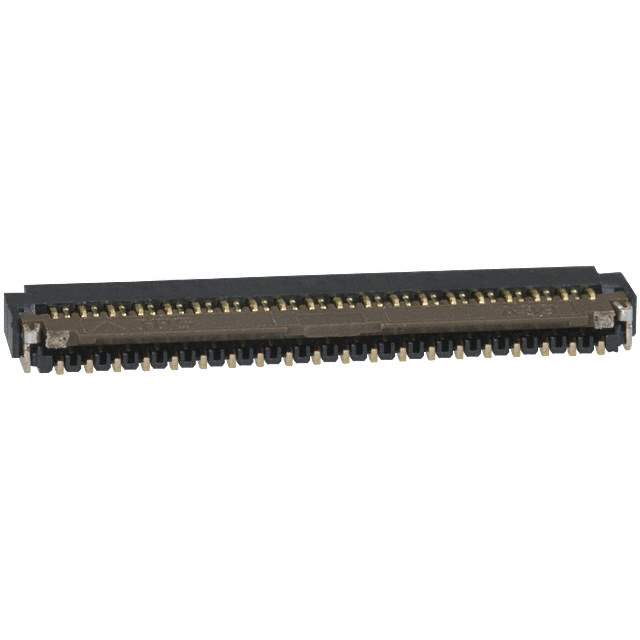

FH26W-39S-0.3SHW(99) Real Image
Same model may have multiple batches, images only for reference.

FH26W-39S-0.3SHW(99)

Part No FH26W-39S-0.3SHW(99)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 39POS 0.30MM R/A
Datasheet
FH26W-39S-0.3SHW(99) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 39
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 HB
Current Rating 0.2A
Housing Color Black
Actuator Color Brown
Mating Cycles 10
Win Source Part Number 1038757-FH26W-39S-0.3SHW(99)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian FH26W-39S-0.3SHW(99) CAD Model

Description

The Hirose Electric Co Ltd FH26W-39S-0.3SHW(99) is a surface mount, right angle connector designed for flat flex cables.

  • Number of Positions: 39
  • Pitch: 0.30mm
  • Feature: Zero Insertion Force (ZIF)
  • Contact Plating: Gold-Plated
  • Voltage Rating: Up to 30V
  • Current Rating: 0.2A
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 HB
  • Actuator Material: Polyamide (PA) and Nylon
  • Actuator Color: Brown
  • Locking Mechanism: Flip Lock
  • Cable End Type: Tapered
  • Suitable Applications: LCD Displays, Digital Cameras, and Mobile Phones
  • Popularity: Medium
  • Supply and Demand: Balance
