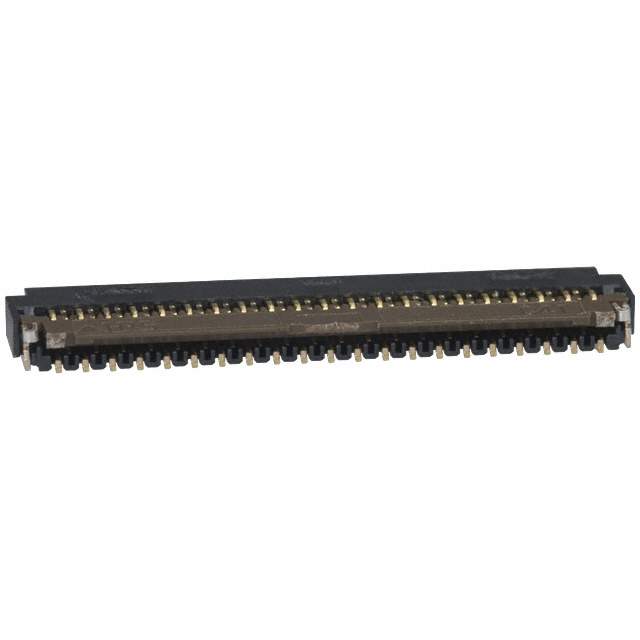

FH26W-41S-0.3SHW(05)

Name: FH26W-41S-0.3SHW(05)
Brand: Hirose Electric Co Ltd
SKU: 1059124
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	FH26W-41S-0.3SHW(05)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC BOTTOM 41POS 0.30MM R/A / 41 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet	FH26W-41S-0.3SHW(05) Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Hirose Electric Co Ltd
Series	FH26
Package	Tape & Reel (TR)
Product Status	Obsolete
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	41
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.039" (1.00mm)
Locking Feature	Flip Lock
Cable End Type	Tapered
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Features	Zero Insertion Force (ZIF)
Voltage Rating	30V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 HB
Current Rating (Amps)	0.2A
Housing Color	Black
Actuator Color	Brown
Mating Cycles	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	580-2413-0-05
Standard Package	5,000
Win Source Part Number	1059124-FH26W-41S-0.3SHW(05)
Ultra Librarian 3D Model	Ultra Librarian FH26W-41S-0.3SHW(05) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd 1059124-FH26W-41S-0.3SHW(05) is a flat flexible connector that is used for FFC and FPC connections.

Product: 1059124-FH26W-41S-0.3SHW(05)
Manufacturer: Hirose Electric Co Ltd
Use: For FFC and FPC connections
Positions: 41
Pitch: 0.012" (0.30mm)
Feature: Zero insertion force (ZIF)
Contact Finish: Gold
Voltage Rating: 30V
Height Above Board: 0.039" (1.00mm)
Packaging: Tape and reel
Standard Package: 5,000
ECCN: EAR99
HTSUS Code: 8536.69.4051
