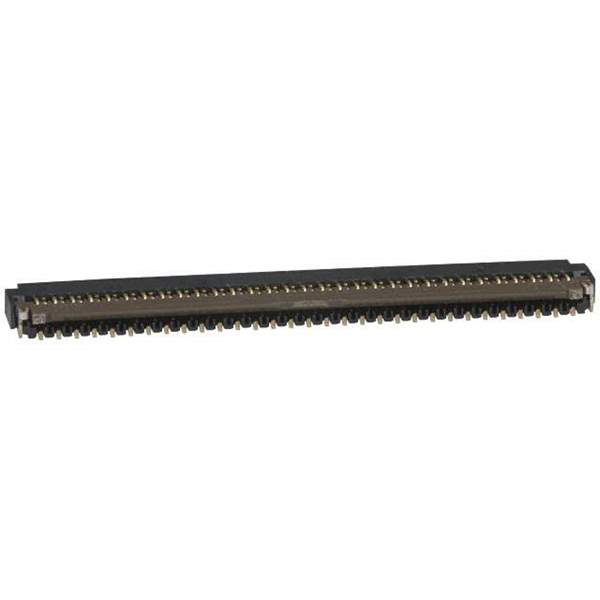

FH26W-61S-0.3SHW(60) Real Image
Same model may have multiple batches, images only for reference.

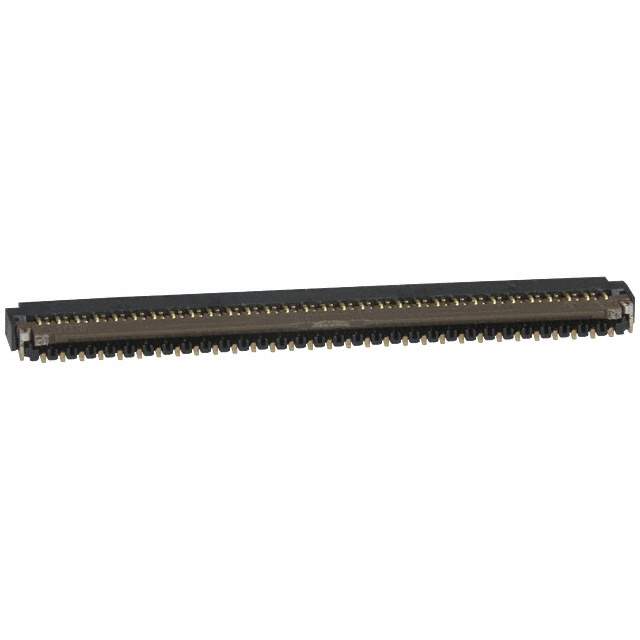

FH26W-61S-0.3SHW(60)

Part No FH26W-61S-0.3SHW(60)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC/FFC 61POS .3MM / 61 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 61
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 HB
Current Rating (Amps) 0.2A
Housing Color Black
Actuator Color Brown
Mating Cycles 10
Base Product Number FH26
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 580-2418-4-60,H125808DKR,H125808CT,FH26W-61S-0.3SHW(60)-ND,H125808TR
Standard Package 5,000
Win Source Part Number 1333403-FH26W-61S-0.3SHW(60)
Ultra Librarian 3D Model Ultra Librarian FH26W-61S-0.3SHW(60) CAD Model

Description

The Hirose Electric Co Ltd FH26W-61S-0.3SHW(60) is a one-row, 61-position FFC/FPC connector assembly with a 0.012" (0.30mm) pitch.

  • Pitch: 0.012" (0.30mm)
  • Number of Positions: 61
  • Mounting Type: Right angle surface mount
  • Locking Feature: Flip lock
  • Contact Location: Bottom
  • Voltage Rating: 30V
  • RoHS Compliant: Yes
  • Standard Package: 5,000
