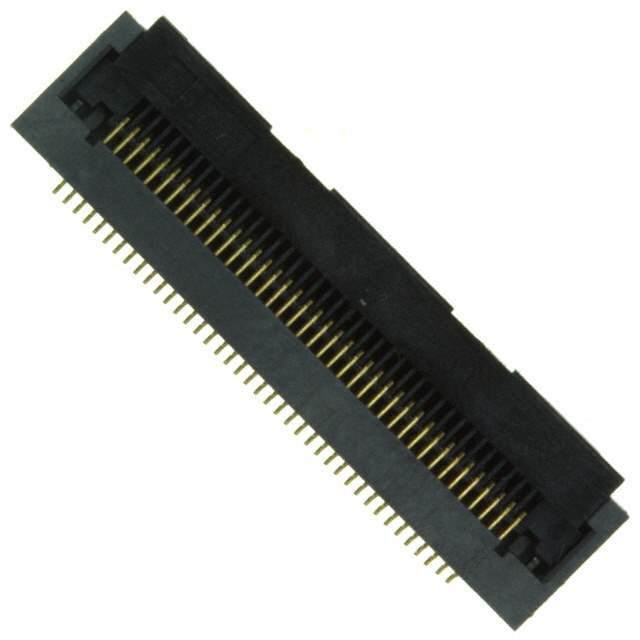

FH28-40S-0.5SH(05) Real Image
Same model may have multiple batches, images only for reference.

FH28-40S-0.5SH(05)

Part No FH28-40S-0.5SH(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 40POS 0.50MM R/A / Conn FFC/FPC Connector SKT 40 POS 0.5mm Solder RA SMD Automotive T/R
Datasheet
FH28-40S-0.5SH(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Series FH28
Packaging Reel package
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 40
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.100" (2.54mm)
Locking Feature Rotary Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Operating Temperature Range -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Gray
Actuator Color Black
Mating Cycles 20
Win Source Part Number 774568-FH28-40S-0.5SH(05)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Family Name FH28
Introduction Date January 05, 2009
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FH28-40S-0.5SH(05) CAD Model

Description

The FH28-40S-0.5SH(05) from Hirose Electric Co Ltd is a top-of-the-line electronic component that is perfect for use in a wide range of applications.

  • Series: FH28
  • Positions: 40
  • Pitch: 0.020 inches
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Operating Temperature: -40°C to 105°C
  • Locking Feature: Rotary Lock
  • Mounting Type: Surface Mount
  • Popularity: Medium
  • Supply and Demand Status: Balanced
