Same model may have multiple batches, images only for reference.

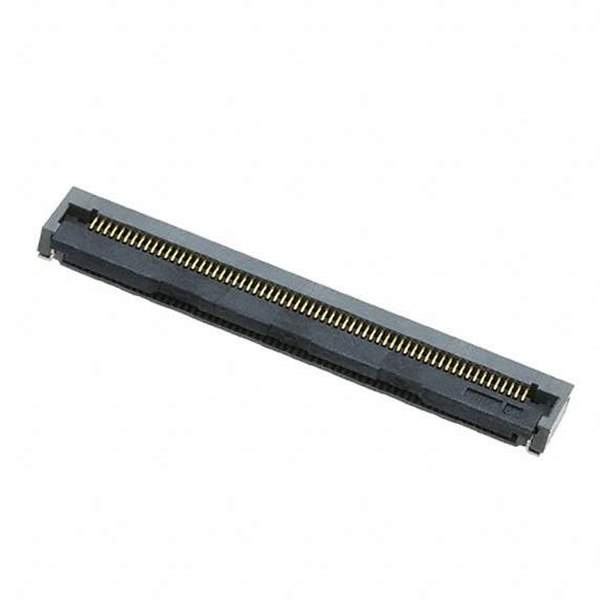

FH28D-64S-0.5SH(98) Real Image
Same model may have multiple batches, images only for reference.

FH28D-64S-0.5SH(98)

Part No FH28D-64S-0.5SH(98)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 64POS 0.50MM R/A / 64 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
FH28D-64S-0.5SH(98) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH28
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 64
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.100" (2.54mm)
Locking Feature Rotary Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Gray
Actuator Color Black
Mating Cycles 20
Base Product Number FH28
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 586-1813-1-98,H124631CT,H124631DKR,*FH28D-64S-0.5SH(98)-ND,-FH28D-64S-0.5SH(98)DKR,-FH28D-64S-0.5SH(98),-FH28D-64S-0.5SH(98)-ND,*FH28D-64S-0.5SH(98),H124631TR,FH28D-64S-0.5SH(98)-ND,*FH28D-64S-0.5SH(98)CT-ND,-FH28D-64S-0.5SH(98)CT,*FH28D-64S-0.5SH(98)DKR-ND
Standard Package 500
Win Source Part Number 1002614-FH28D-64S-0.5SH(98)
Ultra Librarian 3D Model Ultra Librarian FH28D-64S-0.5SH(98) CAD Model

Description

The FH28D-64S-0.5SH(98) is a connector component manufactured by Hirose Electric Co Ltd.

  • Series: FH28
  • Positions: 64
  • Pitch: 0.020" (0.50mm)
  • Features: solder retention, zero insertion force (ZIF)
  • Voltage Rating: 50V
  • Material: liquid crystal polymer (LCP)
  • Halogen-Free: Yes
  • Flammability Rating: UL94 V-0
  • Packaging: tape and reel
  • Mounting Type: surface mount, right-angle
  • Win Source Part Number: 1002614-FH28D-64S-0.5SH(98)
  • Application: versatile connector component used in various electronic devices and systems
