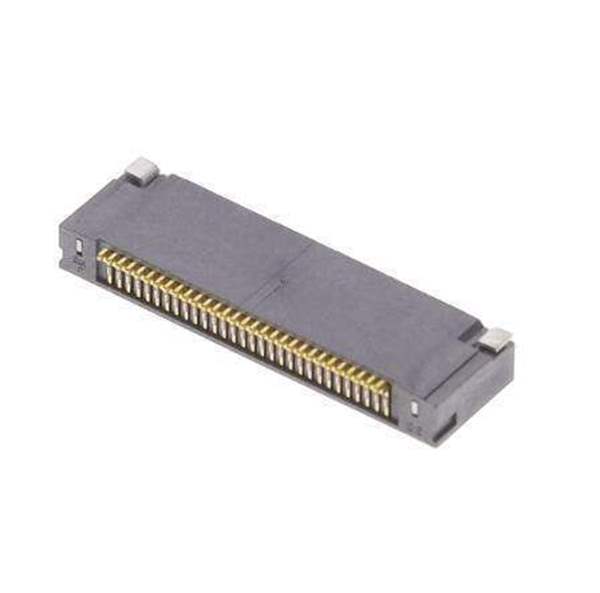

FH28K-30S-0.5SH Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FH28K-30S-0.5SH

Part No FH28K-30S-0.5SH
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 30POS 0.5MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Part Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Pitch 0.020" (0.50mm)
Height Above Board 0.100" (2.54mm)
Housing Material Liquid Crystal Polymer (LCP)
Features Solder Retention
Operating Temperature -40°C ~ 125°C
Win Source Part Number WS1305520-FH28K-30S-0.5SH
Ultra Librarian 3D Model Ultra Librarian FH28K-30S-0.5SH CAD Model

Description

30 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
