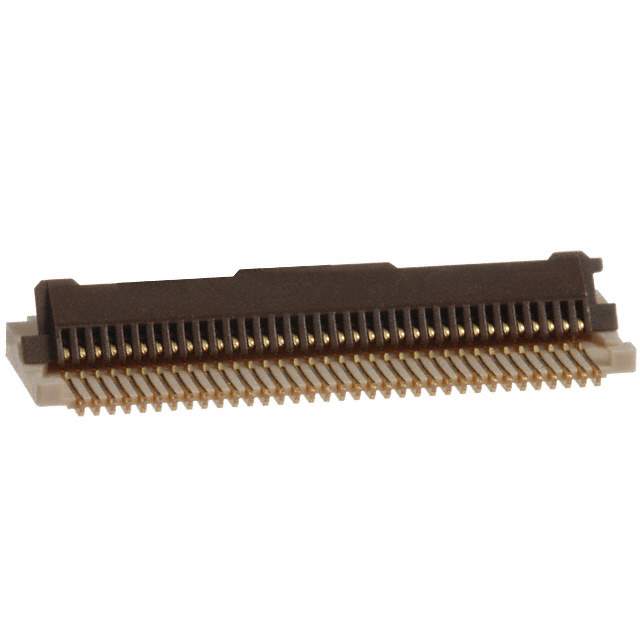

FH29-70S-0.2SHW(05)

Name: FH29-70S-0.2SHW(05)
Brand: Hirose Electric Co Ltd
SKU: 973860
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FH29-70S-0.2SHW(05)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC BOTTOM 70POS 0.20MM R/A / 70 Position FPC Connector Contacts, Bottom 0.008" (0.20mm) Surface Mount, Right Angle
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Hirose Electric Co Ltd
Series	FH29
Package	Tape & Reel (TR),Cut Tape (CT)
Product Status	Obsolete
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	70
Pitch	0.008" (0.20mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.047" (1.20mm)
Locking Feature	Flip Lock
Cable End Type	Tabbed
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Features	Zero Insertion Force (ZIF)
Voltage Rating	40V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.25A
Contact Finish Thickness	Flash
Housing Color	Beige
Actuator Color	Brown
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	HFD070TR,*FH29-70S-0.2SHW(05),HFD070CT,FH2970S02SHW05
Standard Package	5,000
Win Source Part Number	973860-FH29-70S-0.2SHW(05)
Ultra Librarian 3D Model	Ultra Librarian FH29-70S-0.2SHW(05) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd FH29-70S-0.2SHW(05) is a FFC, FPC (Flat Flexible) Connector that has 70 positions and a pitch of 0.008" (0.20mm).

Positions: 70
Pitch: 0.008" (0.20mm)
Feature: Zero Insertion Force (ZIF)
Termination: Solder
Material: Phosphor Bronze
Contact Finish: Gold
Contact Finish Thickness: Flash
Voltage Rating: 40V
Current Rating: 0.25A
Series: FH29
Packaging: Tape & Reel (TR), Cut Tape (CT)
