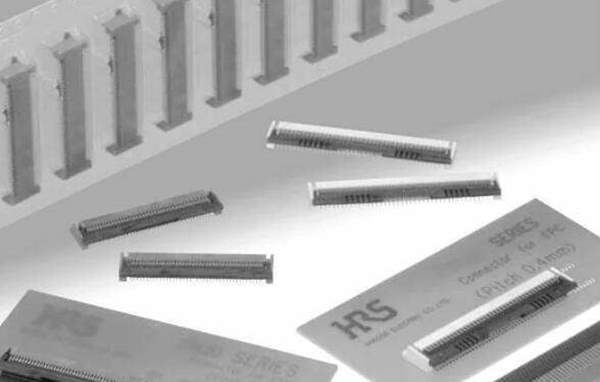

FH30M-96S-0.4SHW(05)Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FH30M-96S-0.4SHW(05)

Part No FH30M-96S-0.4SHW(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 96POS 0.4MM R/A
Datasheet
FH30M-96S-0.4SHW(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Packaging Tape & Reel (TR)
Part Status Active
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Pitch 0.016" (0.40mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Locking Feature Rotary Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Housing Material Zero Insertion Force (ZIF)
Operating Temperature -40°C ~ 85°C
Win Source Part Number WS1305275-FH30M-96S-0.4SHW(05)
Ultra Librarian 3D Model Ultra Librarian FH30M-96S-0.4SHW(05) CAD Model

Description

96 Position FPC Connector Contacts, Bottom 0.016" (0.40mm) Surface Mount, Right Angle
