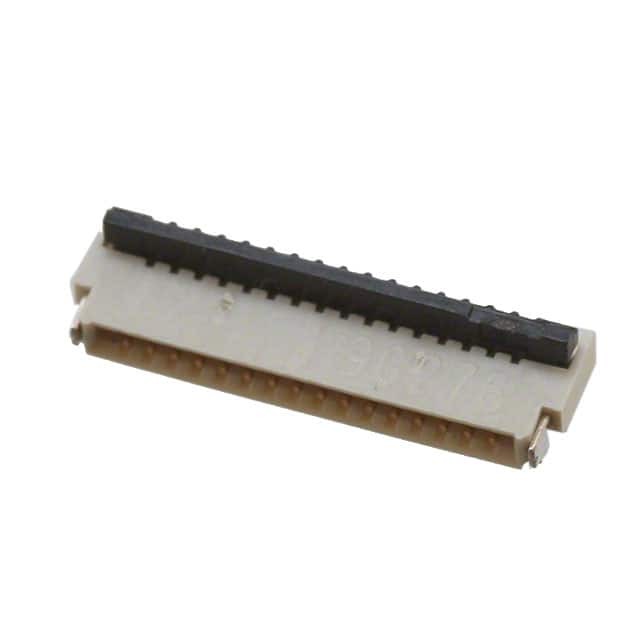

Same model may have multiple batches, images only for reference.
FH34S-16S-0.5SH(99)
Same model may have multiple batches, images only for reference.

FH34S-16S-0.5SH(99)

Part No FH34S-16S-0.5SH(99)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC TOP 16POS 0.5MM R/A / 16 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
FH34S-16S-0.5SH(99) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series FH34S
Package Tape & Reel
Product Status Obsolete
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 16
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.039" (1.00mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Standard Package 500 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 871905-FH34S-16S-0.5SH(99)
Ultra Librarian 3D Model Ultra Librarian FH34S-16S-0.5SH(99) CAD Model

Description

The FH34S-16S-0.5SH(99) is a flat flexible connector assembly from Hirose Electric Co Ltd.

  • Series: FH34S
  • Positions: 16
  • Pitch: 0.020" (0.50mm)
  • Mechanism: Zero Insertion Force (ZIF)
  • Termination: Solder
  • Contact Finish: Gold
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Housing Color: Beige
  • Mounting: Surface Mount, Right Angle
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Package: Tape & Reel
  • Quantity per Package: 500 pcs
  • Temperature Range: -55°C to 85°C
  • Status: Obsolete
