Same model may have multiple batches, images only for reference.

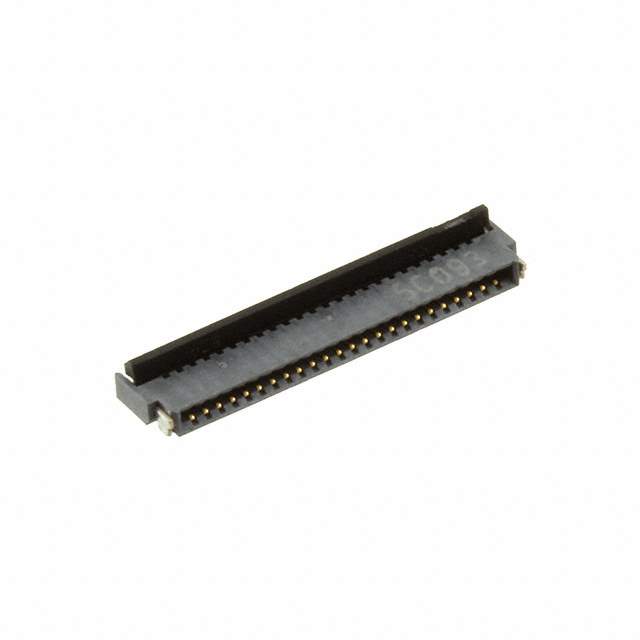

FH34SRJ-24S-0.5SH(50) Real Image
Same model may have multiple batches, images only for reference.

FH34SRJ-24S-0.5SH(50)

Part No FH34SRJ-24S-0.5SH(50)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC/FFC 24POS .5MM
Datasheet
FH34SRJ-24S-0.5SH(50) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 24
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.039" (1.00mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Gray
Actuator Color Black
Mating Cycles 20
Win Source Part Number 1038786-FH34SRJ-24S-0.5SH(50)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian FH34SRJ-24S-0.5SH(50) CAD Model

Description

The Hirose Electric Co Ltd FH34SRJ-24S-0.5SH(50) connector is a 24-position solder termination connector with a rotary lock and backlock locking feature.

  • Positions: 24
  • Termination: Solder
  • Locking Feature: Rotary lock and backlock
  • Pitch: 0.020" (0.50mm)
  • Mounting: Surface mount, right angle
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Insulation Material: Liquid Crystal Polymer (LCP), Halogen Free
  • Flammability Rating: UL94 V-0
  • Height above Board: 0.039" (1.00mm)
  • Flat Flex Type: FFC and FPC
  • Contact Finish: Gold
