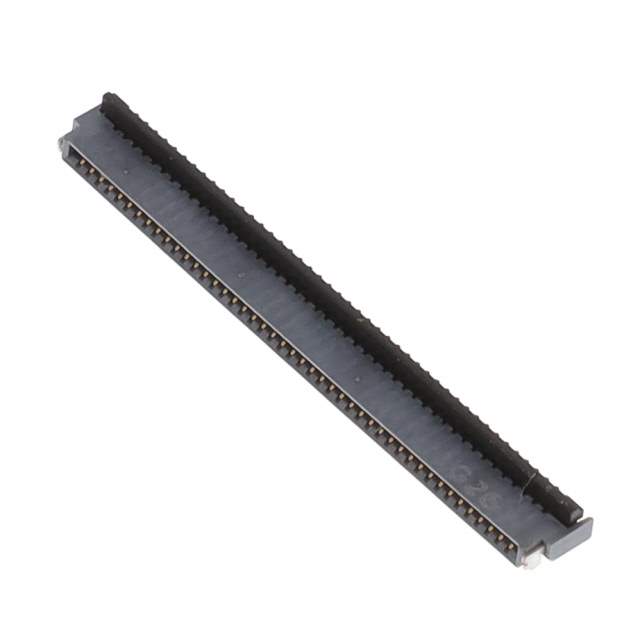

FH34SRJ-45S-0.5SH(50) Real Image
Same model may have multiple batches, images only for reference.

FH34SRJ-45S-0.5SH(50)

Part No FH34SRJ-45S-0.5SH(50)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC 0.5MM SMD  /  45 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH34SRJ
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 45
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.039" (1.00mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 1.97µin (0.050µm)
Housing Color Gray
Actuator Color Black
Mating Cycles 20
Base Product Number FH34SRJ
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names -1235-FH34SRJ-45S-0.5SH(50)DKR,26-FH34SRJ-45S-0.5SH(50)CT,-1235-FH34SRJ-45S-0.5SH(50)CT,26-FH34SRJ-45S-0.5SH(50)DKR,FH34SRJ-45S-0.5SH(50)-ND,580-1265-0-50,26-FH34SRJ-45S-0.5SH(50)TR
Standard Package 5,000
Win Source Part Number 1194993-FH34SRJ-45S-0.5SH(50)
Ultra Librarian 3D Model Ultra Librarian FH34SRJ-45S-0.5SH(50) CAD Model

Description

The FH34SRJ series is a range of flat flexible connectors used for FFC and FPC.

  • Positions: 45 positions.
  • Pitch: 0.020" (0.50mm).
  • Feature: Zero insertion force (ZIF).
  • Termination: Solder termination.
  • Contact Material: Phosphor bronze.
  • Voltage Rating: 50V.
  • Material Flammability Rating: UL94 V-0.
  • Housing Material: Liquid crystal polymer (LCP), which is halogen-free.
  • Height Above Board: 0.039" (1.00mm).
  • Flat Flex Type: FFC, FPC.
  • Locking Feature: Rotary lock and backlock.
  • Cable End Type: Tapered cable end.
  • Mounting Type: Surface mount, right-angle.
  • Temperature Range: -55°C ~ 105°C.
  • Current Rating: 0.5A.
