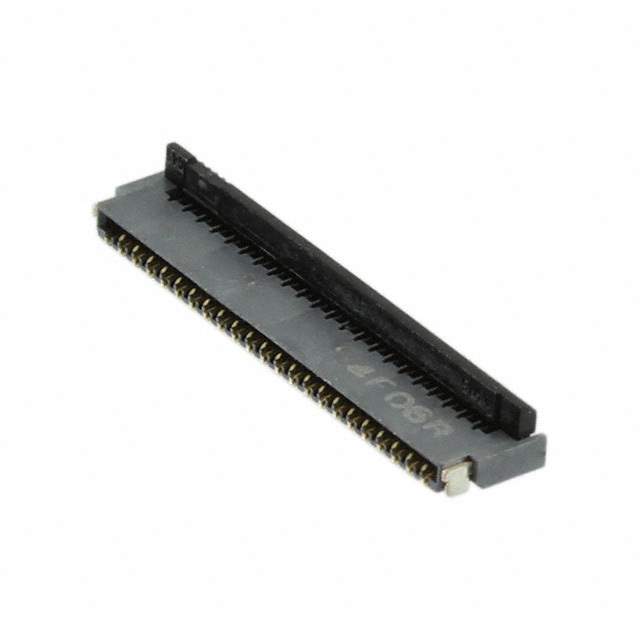

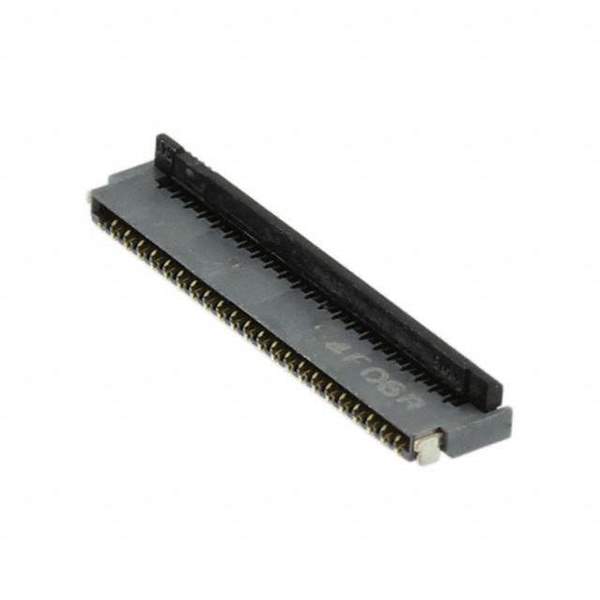

FH35C-45S-0.3SHW(50) Real Image
Same model may have multiple batches, images only for reference.

FH35C-45S-0.3SHW(50)

Part No FH35C-45S-0.3SHW(50)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 45POS 0.30MM R/A
Datasheet
FH35C-45S-0.3SHW(50) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 45
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.036" (0.90mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Voltage Rating 30V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A
Contact Finish Thickness 12μin (0.30μm)
Housing Color Gray
Actuator Color Black
Mating Cycles 10
Win Source Part Number 1038811-FH35C-45S-0.3SHW(50)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian FH35C-45S-0.3SHW(50) CAD Model

Description

The FH35C-45S-0.3SHW(50) is a top and bottom contacts, right angle surface mount connector by Hirose Electric Co Ltd.

  • Position: 45
  • FPC connector Pitch: 0.012" (0.30mm)
  • Current Rating: 0.2A
  • Locking Feature: flip lock and backlock
  • Housing Material: liquid crystal polymer (LCP) with a UL94 V-0 flammability rating
  • Voltage Rating: 30V
  • Temperature Range: -55°C to 85°C
  • Supply: in a reel of 5k pcs
