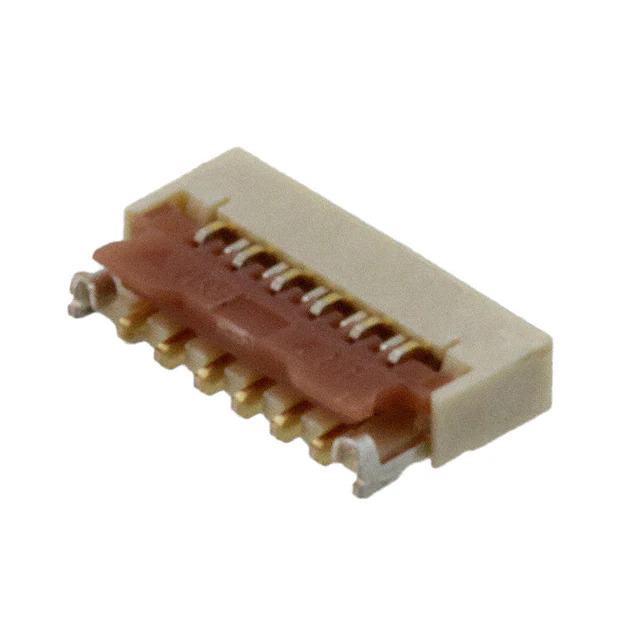

FH36W-11S-0.3SHW(50)

Name: FH36W-11S-0.3SHW(50)
Brand: Hirose Electric Co Ltd
SKU: 1354281
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	FH36W-11S-0.3SHW(50)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC BOTTOM 11POS 0.3MM R/A / 11 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet	FH36W-11S-0.3SHW(50) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	Hirose Electric Co Ltd
Series	FH36
Package	Tape & Reel
Product Status	Active
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	11
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.20mm
Height Above Board	0.039" (1.00mm)
Locking Feature	Flip Lock
Cable End Type	Tabbed
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Polyamide (PA), Nylon
Features	Zero Insertion Force (ZIF)
Voltage Rating	30V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 HB
Current Rating (Amps)	0.2A
Contact Finish Thickness	19.7µin (0.50µm)
Housing Color	Beige
Actuator Color	Brown
Mating Cycles	10
Base Product Number	FH36
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Win Source Part Number	1354281-FH36W-11S-0.3SHW(50)
Ultra Librarian 3D Model	Ultra Librarian FH36W-11S-0.3SHW(50) CAD Model

Alternative Products

Description

The FH36W-11S-0.3SHW(50) is a FFC, FPC (Flat Flexible) Connector Assembly manufactured by Hirose Electric Co Ltd.

Mounting Type: Surface Mount
Orientation: Right Angle
Pitch: 0.012" (0.30mm)
Locking Feature: Flip Lock
Cable End Type: Tabbed
Number of Positions: 11
Current Rating: 0.2A
Contact Finish: Gold, 19.7µin (0.50µm)
Housing Color: Beige
Actuator Color: Brown
Contact Material: Phosphor Bronze
Housing Material: Liquid Crystal Polymer (LCP), Halogen-Free
Voltage Rating: 30V
Height Above Board: 0.039" (1.00mm)
Series: FH36
Packaging: Tape & Reel
Temperature Range: -55°C to 85°C
