Same model may have multiple batches, images only for reference.

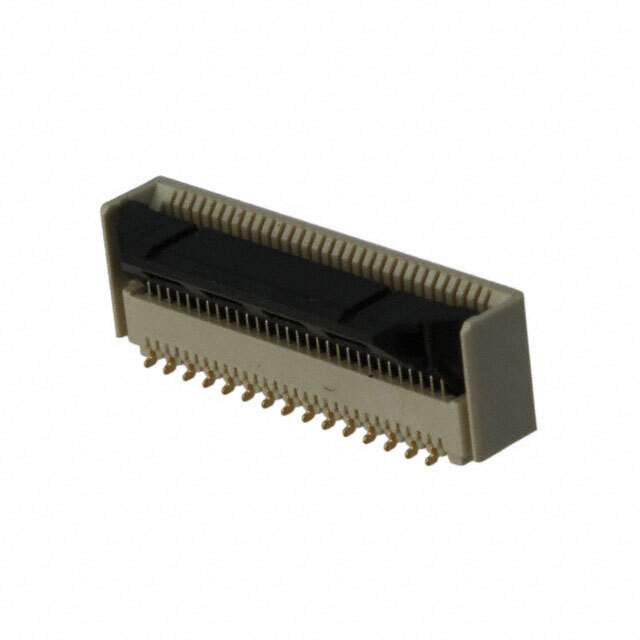

FH40-30S-0.5SV Real Image
Same model may have multiple batches, images only for reference.

FH40-30S-0.5SV

Part No FH40-30S-0.5SV
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC VERT 30POS 0.50MM SMD / 30 Position FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Datasheet
FH40-30S-0.5SV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Flat Flex Type FPC
Mounting Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 30
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.228" (5.80mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 2.00µin (0.051µm)
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Base Product Number FH40
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 580-2108-7-00,HFW30TR,HFW30CT,HFW30DKR,*FH40-30S-0.5SV,FH4030S05SV
Standard Package 1,000
Win Source Part Number 1333279-FH40-30S-0.5SV
Ultra Librarian 3D Model Ultra Librarian FH40-30S-0.5SV CAD Model

Description

The FH40-30S-0.5SV is a 30-position FFC/FPC connector assembly manufactured by Hirose Electric Co Ltd.

  • Installation: Surface Mount
  • Locking Feature: Flip-Lock
  • Material: Phosphor Bronze
  • Finish: Gold
  • Thickness: 2.00µin (0.051µm)
  • Pitch: 0.020" (0.50mm)
  • Voltage Rating: 50V
  • Flat Flex Type: FPC
  • Cable End Type: Tabbed
  • Housing and Actuator Materials: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Height Above Board: 0.228" (5.80mm)
  • Mating Cycle: 20
  • Current Rating: 0.5A
  • Temperature Range: -40°C ~ 105°C
  • RoHS Compliant: True
  • Standard Package: 1,000
