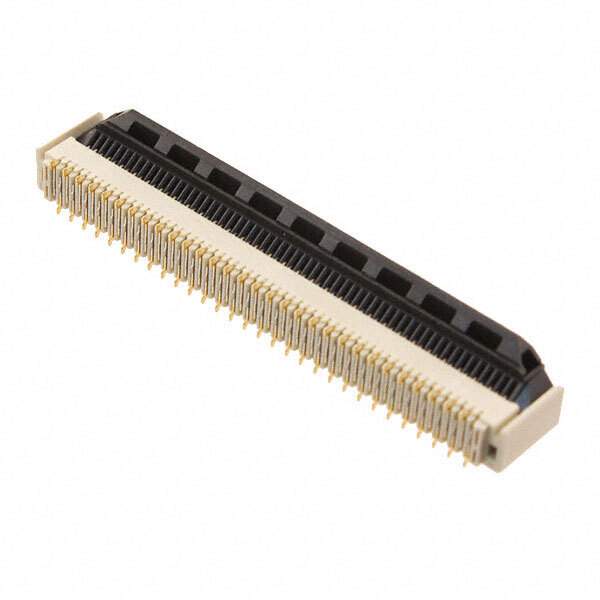

FH40-60S-0.5SV Real Image
Same model may have multiple batches, images only for reference.

FH40-60S-0.5SV

Part No FH40-60S-0.5SV
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC VERT 60POS 0.50MM SMD / 60 Position FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Flat Flex Type FPC
Mounting Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 60
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.228" (5.80mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 2.00µin (0.051µm)
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Base Product Number FH40
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number FH4060S05SV,HFW60CT,HFW60TR,HFW60DKR,580-2109-0-00,*FH40-60S-0.5SV
Standard Package 1,000
Win Source Part Number 1333281-FH40-60S-0.5SV
Ultra Librarian 3D Model Ultra Librarian FH40-60S-0.5SV CAD Model

Description

The Hirose Electric Co Ltd FH40-60S-0.5SV connector is a 60-position connector with a flip lock locking feature.

  • Housing Material: Liquid Crystal Polymer (LCP)
  • Color: Beige
  • Cable Type: Flat Flexible Cable (FFC)
  • Cable End Type: Tabbed
  • Mounting: Surface Mountable
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Material Flammability Rating: UL94 V-0
  • Packaging: Reel-Tr
  • Standard Package: 1,000
  • RoHS Compliant: True
