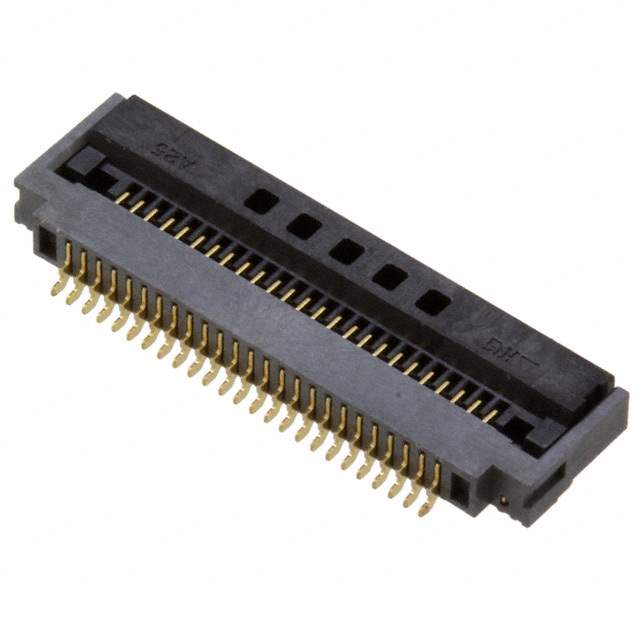

FH52-25S-0.5SH(99)

Name: FH52-25S-0.5SH(99)
Brand: Hirose Electric Co Ltd
SKU: 774573
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FH52-25S-0.5SH(99)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC BOTTOM 25POS 0.50MM R/A / Conn FFC/FPC Connector F 25 POS 0.5mm Solder RA SMD Automotive T/R
Datasheet	FH52-25S-0.5SH(99) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Hirose Electric Co Ltd
Series	FH52
Packaging	Reel package
Flat Flex Type	FFC, FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	25
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.079" (2.00mm)
Locking Feature	Flip Lock
Cable End Type	Tabbed
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Operating Temperature Range	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Current Rating	0.5A
Contact Finish Thickness	1.25μin (0.03μm)
Housing Color	Gray
Actuator Color	Black
Mating Cycles	20
Win Source Part Number	774573-FH52-25S-0.5SH(99)
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	500
Family Name	FH52
ECCN	EAR99
Country of Origin	Japan
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian FH52-25S-0.5SH(99) CAD Model

Alternative Products

Description

The FH52 series connector from Hirose Electric Co Ltd is a 25-position FFC/FPC connector with a pitch of 0.020" (0.50mm).

Series: FH52
Positions: 25
Pitch: 0.020" (0.50mm)
Mounting Type: Surface Mount, Right Angle
Height Above Board: 0.079" (2.00mm)
Locking Feature: Flip Lock
Housing Material: Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material: Liquid Crystal Polymer (LCP), Halogen Free
Material Flammability Rating: UL94 V-0
Housing Color: Gray
Mating Cycles: 20
FFC/FPC Compatibility: FFC, FPC
