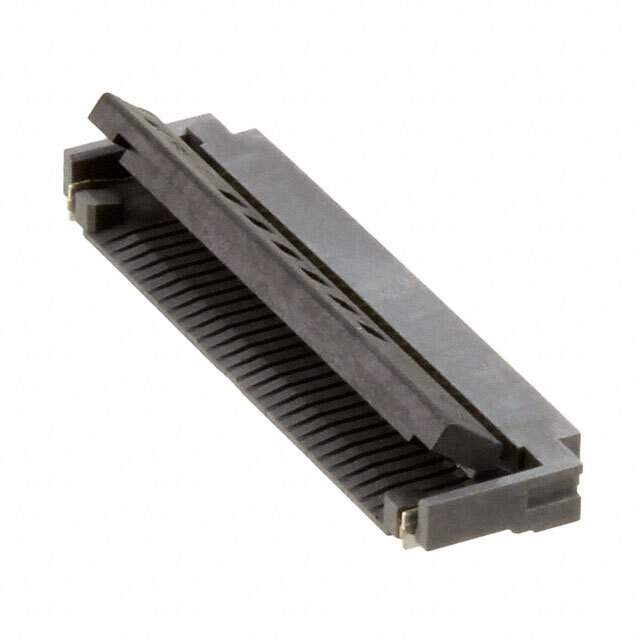

FH52-28S-0.5SH(99) Real Image
Same model may have multiple batches, images only for reference.

FH52-28S-0.5SH(99)

Part No FH52-28S-0.5SH(99)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH52
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 28
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 1.25µin (0.03µm)
Housing Color Gray
Actuator Color Black
Mating Cycles 20
Base Product Number FH52
Other Names HFZ028TR,FH5228S05SH99,HFZ028CT,HFZ028DKR,580-3324-8-99
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1294098-FH52-28S-0.5SH(99)
Ultra Librarian 3D Model Ultra Librarian FH52-28S-0.5SH(99) CAD Model

Description

The FH52-28S-0.5SH(99) is an electronic component manufactured by Hirose Electric Co Ltd.

  • Category: FFC, FPC (Flat Flexible) Connectors
  • Lock: Flip Lock
  • Mounting: Surface Right Angle
