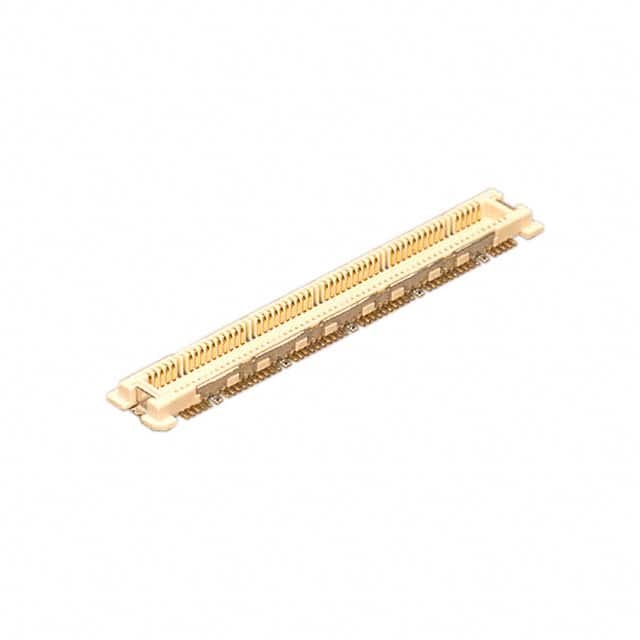

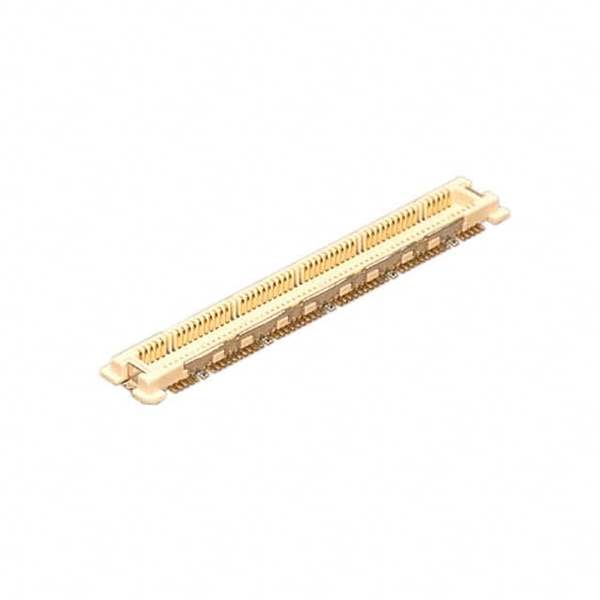

Part No FX11LA-100P/10-SV(91)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 100POS SMD GOLD / 100 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
FX11LA-100P/10-SV(91) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series FX11
Package Tape & Reel
Product Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 100
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Ground Plate, Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 2mm
Height Above Board 0.075" (1.90mm)
Base Product Number FX11
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 872441-FX11LA-100P/10-SV(91)
Ultra Librarian 3D Model Ultra Librarian FX11LA-100P/10-SV(91) CAD Model

Description

The FX11LA-100P/10-SV(91) is a mezzanine connector designed for board-to-board applications. It features a header with outer shroud contacts and a gold contact finish for excellent conductivity.

  • Positions: 100
  • Rows: Two
  • Pitch: 0.020"
  • Package: Tape & reel
  • Mounting Type: Surface mount
  • Height above the board: 0.075"
  • Mated stacking height: 2mm
  • Manufacturer: Hirose Electric Co Ltd
