Same model may have multiple batches, images only for reference.

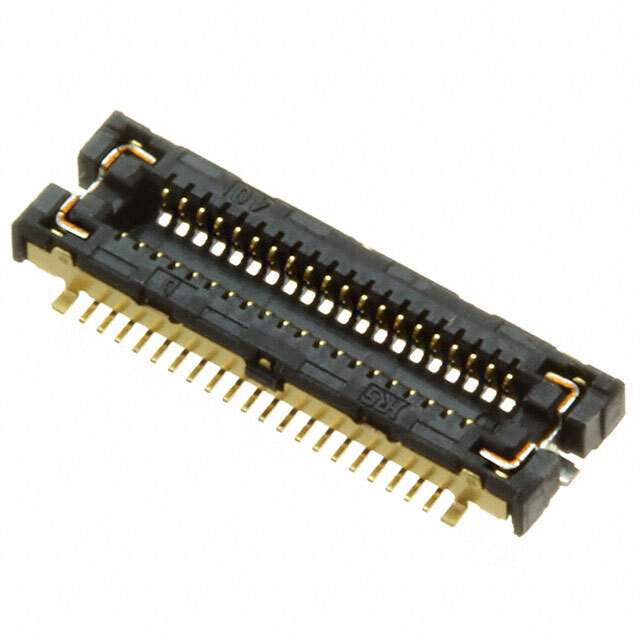

FX12B-40S-0.4SV Real Image
Same model may have multiple batches, images only for reference.

FX12B-40S-0.4SV

Part No FX12B-40S-0.4SV
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN RCPT 40POS SMD GOLD / 40 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Datasheet
FX12B-40S-0.4SV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series FX12
Package Tape & Reel
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 40
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 1.5mm
Height Above Board 0.047" (1.20mm)
Base Product Number FX12
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names FX12B40S04SV,H11408DKR,*FX12B-40S-0.4SV,H11408CT,H11408TR,573-1002-2-00
Standard Package 3,000
Win Source Part Number 1147356-FX12B-40S-0.4SV
Ultra Librarian 3D Model Ultra Librarian FX12B-40S-0.4SV CAD Model

Description

The Hirose Electric FX12 series is a 40 position SMD connector with receptacle and outer shroud contacts.

  • Positions: 40
  • Pitch: 0.016" (0.40mm)
  • Contact Finish: Gold
  • Connector Type: Edge Type, Mezzanine (Board to Board) Rectangular Connectors
  • Solder Retention: Yes
  • Packaging: Tape and Reel
  • Number of Rows: 2
  • Height Above Board: 0.047" (1.20mm)
  • Part Number: FX12B-40S-0.4SV
  • MSL Level: 1 (Unlimited)
