Same model may have multiple batches, images only for reference.

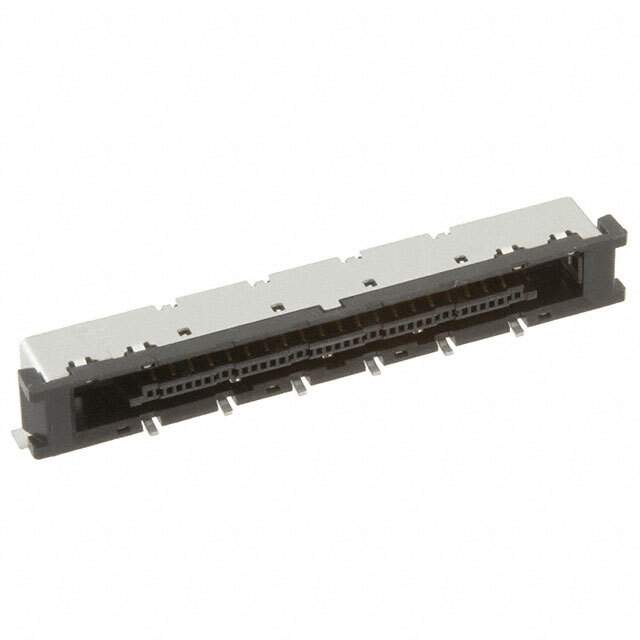

FX15SC-41S-0.5SH Real Image
Same model may have multiple batches, images only for reference.

FX15SC-41S-0.5SH

Part No FX15SC-41S-0.5SH
Manufacturer Hirose Electric Co Ltd
Catalog Pluggable Connectors
Description CONN MULTI-PURP RCPT 41P R/A SMD
Datasheet
FX15SC-41S-0.5SH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features 41 Position Multi-Purpose Receptacle Connector Solder Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series FX15
Package Reel - TR
Mounting Surface Mount, Right Angle
Family Name FX15
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -FX15SC-41S-0.5SH-ND, *FX15SC-41S-0.5SHCT-ND, H124663CT, -FX15SC-41S-0.5SHCT, *FX15SC-41S-0.5SHDKR-ND, FX15SC-41S-0.5SH-ND, *FX15SC-41S-0.5SH-ND, H124663DKR, H124663TR, -FX15SC-41S-0.5SHDKR, 575-2310-2-00, *FX15SC-41S-0.5SH, -FX15SC-41S-0.5SH
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 872447-FX15SC-41S-0.5SH
Ultra Librarian 3D Model Ultra Librarian FX15SC-41S-0.5SH CAD Model

Description

The Hirose Electric Co Ltd FX15SC-41S-0.5SH connector is a 41 position multi-purpose receptacle connector suitable for surface mount, right angle mounting.

  • Positions: 41
  • Mounting: Surface mount, right angle
  • Series: FX15
  • Voltage Rating: 50V
  • Packaging: Reel
  • Quantity per Package: 1000 pcs
  • Insulation Material: Liquid crystal polymer (LCP)
  • Halogen-Free: Yes
  • Housing Color: Gray
  • Current Rating: 0.5A
  • Suitable for: FFC, FPC (Flat Flexible) connectors
  • Locking Feature: Flip lock and backlock
  • Suitable for Cable End Type: Tabbed connections
  • Estimated Production Lead Time: 25 weeks
