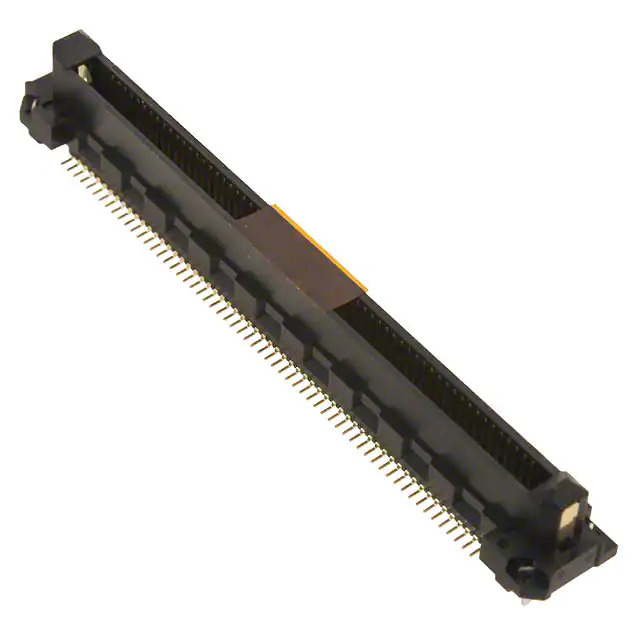

FX18-120P-0.8SV

Name: FX18-120P-0.8SV
Brand: Hirose Electric Co Ltd
SKU: 1364570
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FX18-120P-0.8SV
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HDR 120POS SMD GOLD / 120 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet	FX18-120P-0.8SV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Hirose Electric Co Ltd
Series	FunctionMax™ FX18
Package	Tray
Product Status	Active
Connector Type	Header, Outer Shroud Contacts
Number of Positions	120
Pitch	0.031" (0.80mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	4.00µin (0.100µm)
Mated Stacking Heights	15mm, 20mm
Height Above Board	0.341" (8.65mm)
Base Product Number	FX18
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1364570-FX18-120P-0.8SV
Ultra Librarian 3D Model	Ultra Librarian FX18-120P-0.8SV CAD Model

Alternative Products

Description

The FX18-120P-0.8SV is a rectangular connector array from Hirose Electric Co Ltd.

Series: FunctionMax™ FX18
Mounting Type: Surface Mount
Connector Type: Header
Contact Type: Outer Shroud
Contact Finish: Gold
Positions: 120
Rows: 2
Mated Stacking Heights: 15mm and 20mm
Pitch: 0.031" (0.80mm)
Height Above Board: 0.341" (8.65mm)
MSL Level: 1
HTSUS Code: 8536.69.4040
ECCN: EAR99
