Same model may have multiple batches, images only for reference.

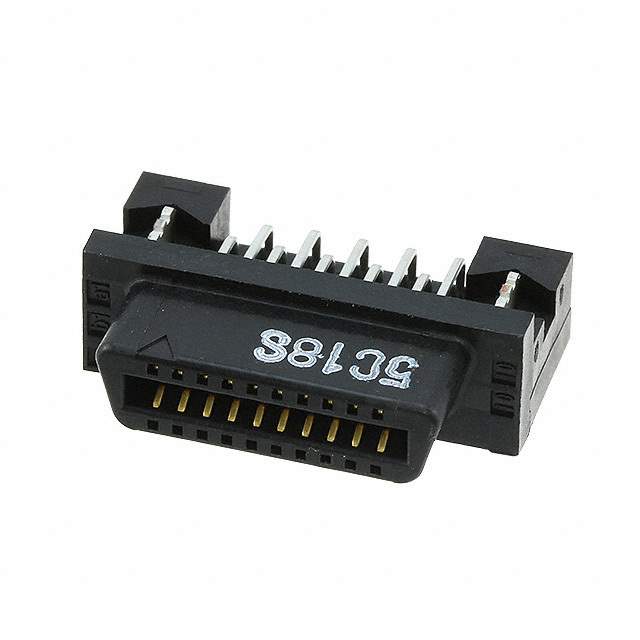

FX2-20S-1.27DSL(71) Real Image
Same model may have multiple batches, images only for reference.

FX2-20S-1.27DSL(71)

Part No FX2-20S-1.27DSL(71)
Manufacturer Hirose Electric Co Ltd
Catalog D - SUB, D - SHAPED connectors
Description CONN BTB RCPT 20POS R/A SOLDER / 20 Position Receptacle Connector Board to Board Through Hole, Right Angle Solder
Datasheet
FX2-20S-1.27DSL(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - Centronics Connectors
Mfr Hirose Electric Co Ltd
Series FX2
Package Tray
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 20
Number of Rows 2
Mounting Type Through Hole, Right Angle
Termination Solder
Type Board to Board
Features Board Lock
Contact Finish Gold
Base Product Number FX2
Standard Package 110
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340855-FX2-20S-1.27DSL(71)
Ultra Librarian 3D Model Ultra Librarian FX2-20S-1.27DSL(71) CAD Model

Description

The FX2 series connector assembly is a centronics connector with 20 positions.

  • Product Name: FX2 Series Connector Assembly
  • Connector Type: Receptacle
  • Number of Positions: 20
  • Contacts: Outer Shroud
  • Positions Loaded: All
  • Termination: Solder
  • Contact Finish: Gold
  • Standard Package: 110
  • Mounting Type: Through Hole, Right Angle
  • Temperature Range: -55°C to 85°C
  • ECCN: EAR99
  • Current Rating: 2A
