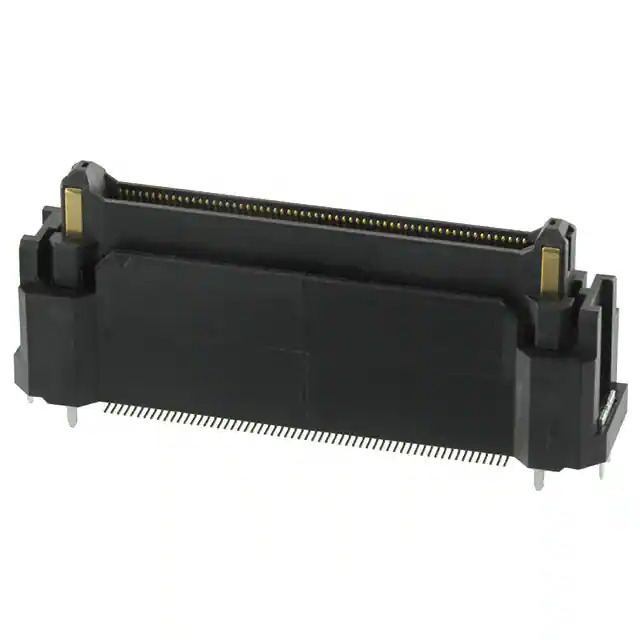

FX23-120P-0.5SV20 Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FX23-120P-0.5SV20

Part No FX23-120P-0.5SV20
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 120POS SMD GOLD / 124 (120 + 4 Power) Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
FX23-120P-0.5SV20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series FunctionMax™ FX23
Package Tray
Product Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 124 (120 + 4 Power)
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 20mm, 30mm
Height Above Board 0.703" (17.85mm)
Base Product Number FX23
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364504-FX23-120P-0.5SV20
Ultra Librarian 3D Model Ultra Librarian FX23-120P-0.5SV20 CAD Model

Description

The Hirose Electric Co Ltd FunctionMax™ FX23 series is a high-quality rectangular connector array suitable for board-to-board and mezzanine connections.

  • Pitch: 0.020" (0.50mm)
  • Positions: 124 (120 + 4 Power)
  • Contact Finish: Gold @ 4.00µin (0.100µm)
  • Mounting Type: Surface Mount
  • Package: Tray
  • Features: Board Guide
  • Mated Stacking Heights: 20mm and 30mm
  • Height Above Board: 0.703" (17.85mm)
  • Product Status: Active
