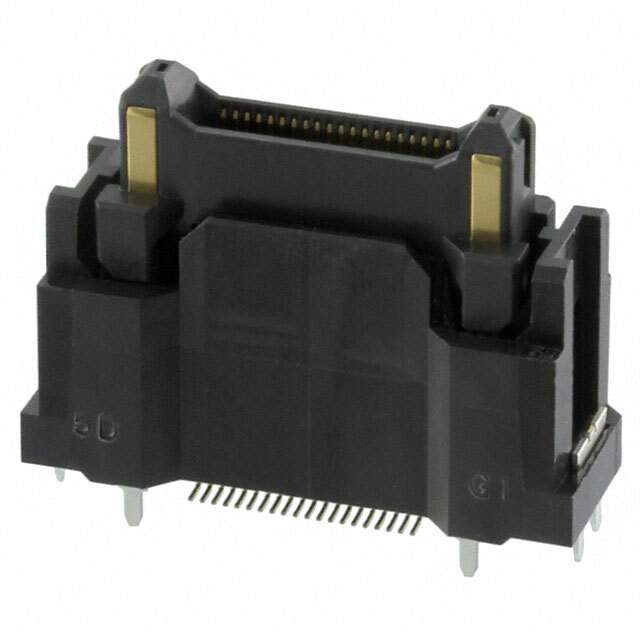

FX23-40P-0.5SV20 Real Image
Same model may have multiple batches, images only for reference.

FX23-40P-0.5SV20

Part No FX23-40P-0.5SV20
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series FunctionMax™ FX23
Package Tray
Connector Type Header, Outer Shroud Contacts
Number of Positions 44 (40 + 4 Power)
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 20mm, 30mm
Height Above Board 0.703" (17.85mm)
Base Product Number FX23
Other Names H125043,573-3102-8-00
Standard Package 84
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293996-FX23-40P-0.5SV20
Ultra Librarian 3D Model Ultra Librarian FX23-40P-0.5SV20 CAD Model

Description

The FunctionMax™ FX23 series connector from Hirose Electric Co Ltd is a header, outer shroud contacts connector that features 44 positions with a pitch of 0.50mm.

  • Positions: 44
  • Pitch: 0.50mm
  • Series: FunctionMax™ FX23
  • Connector Type: Header, Outer Shroud Contacts
  • Mounting Type: SMD (SMT)
  • Height Above Board: 17.85mm
  • Contact Finish: Gold
  • Contact Finish Thickness: 0.100μm
  • Features: Board Guide
  • Mated Stacking Heights: 20mm and 30mm
  • Package: Tray
  • Standard Package: 84
  • Voltage Rating: -
  • Current Rating: -
  • HTSUS: 8536.69.4040
