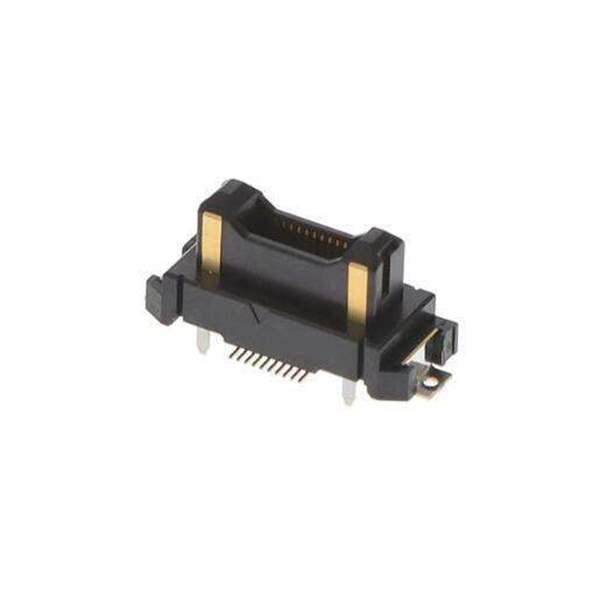

FX23L-20P-0.5SV10

Part No FX23L-20P-0.5SV10
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular - Board to Board Connectors
Description CONN HDR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Part Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 24 (20 + 4 Power)
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Height Above Board 0.348" (8.84mm)
Win Source Part Number WS1305483-FX23L-20P-0.5SV10
Ultra Librarian 3D Model Ultra Librarian FX23L-20P-0.5SV10 CAD Model

Description

24 (20 + 4 Power) Position Connector Header, Outer Shroud Contacts Surface Mount Gold
