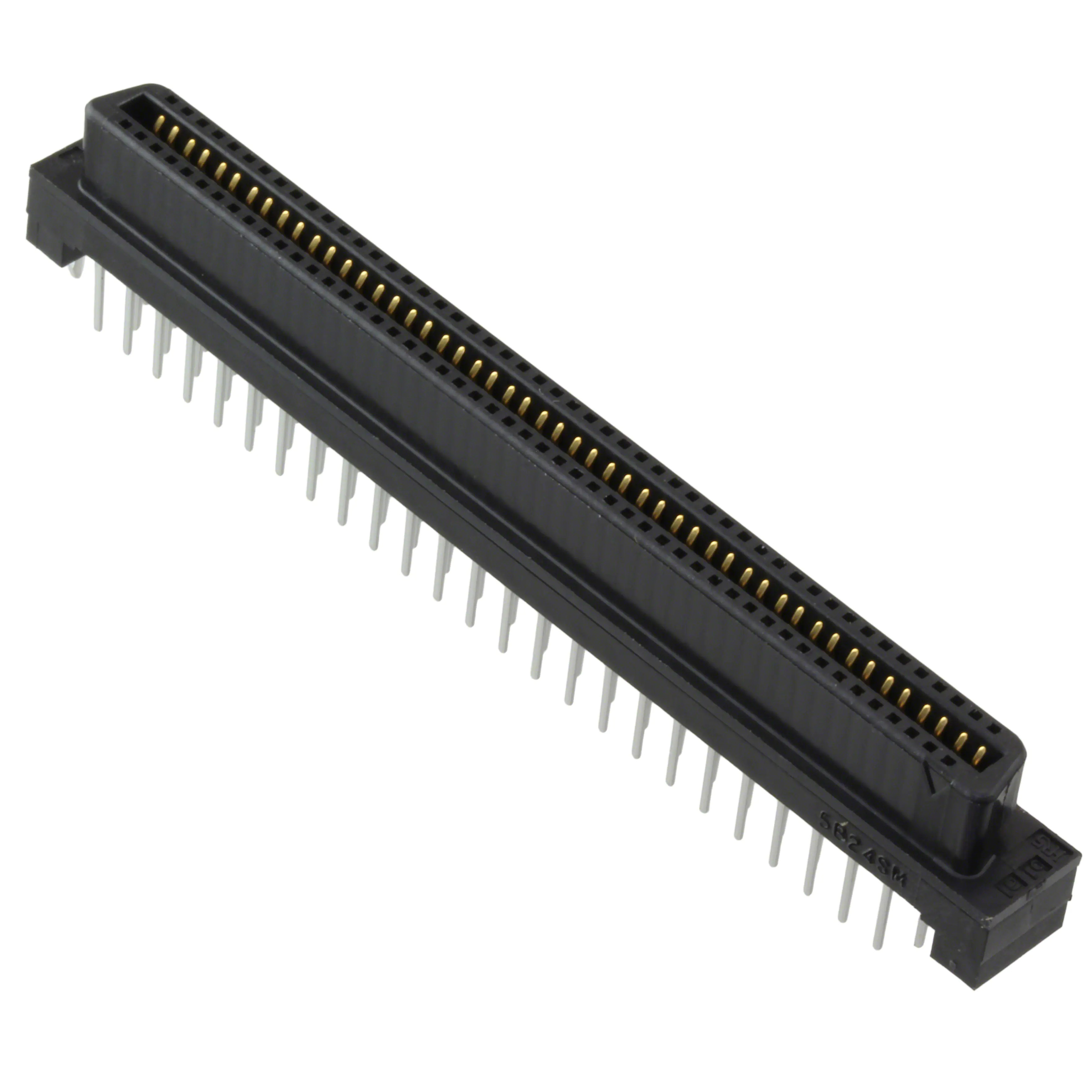

FX2CA2-100S-1.27DSAL(71) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FX2CA2-100S-1.27DSAL(71)

Part No FX2CA2-100S-1.27DSAL(71)
Manufacturer Hirose Electric Co Ltd
Catalog D - SUB, D - SHAPED connectors
Description CONN RECEPT 100POS 1.27MM / 100 Position Receptacle Connector Board to Board Through Hole Solder
Datasheet
FX2CA2-100S-1.27DSAL(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - Centronics Connectors
Mfr Hirose Electric Co Ltd
Series FX2
Package Tray
Product Status Active
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 100
Number of Rows 2
Mounting Type Through Hole
Termination Solder
Flange Feature -
Type Board to Board
Features Board Lock
Contact Finish Gold
Contact Finish Thickness 7.87µin (0.200µm)
Base Product Number FX2C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362724-FX2CA2-100S-1.27DSAL(71)
Ultra Librarian 3D Model Ultra Librarian FX2CA2-100S-1.27DSAL(71) CAD Model

Description

The Hirose Electric Co Ltd FX2CA2-100S-1.27DSAL(71) is a board-to-board connector belonging to the FX2 series.

  • Series: FX2
  • Connector Type: Receptacle
  • Number of Positions: 100
  • Number of Rows: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 7.87µin (0.200µm)
  • Mounting Type: Through Hole
  • Board Lock: Yes
  • Termination: Solder
  • RoHS Compliant: Yes
