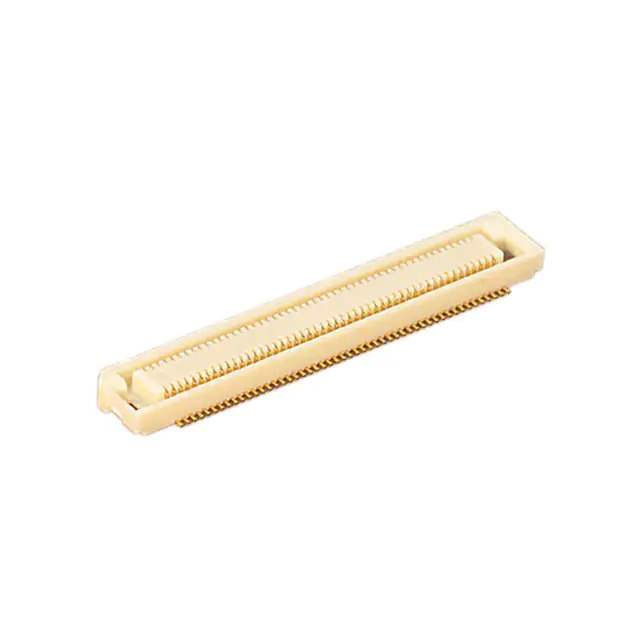

FX8-100S-SV(22) Real Image
Same model may have multiple batches, images only for reference.

FX8-100S-SV(22)

Part No FX8-100S-SV(22)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 100POS SMD GOLD / 100 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet
FX8-100S-SV(22) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series FunctionMax™ FX8
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Connector Type Receptacle, Center Strip Contacts
Number of Positions 100
Pitch 0.024" (0.60mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Mated Stacking Heights 3mm, 4mm
Height Above Board 0.089" (2.26mm)
Base Product Number FX8
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848355-FX8-100S-SV(22)
Ultra Librarian 3D Model Ultra Librarian FX8-100S-SV(22) CAD Model

Description

The FunctionMax™ FX8 series is a mezzanine connector designed for board-to-board applications from Hirose Electric Co Ltd.

  • Connector Type: Receptacle
  • Contact Type: Center Strip
  • Positions: 100
  • Pitch: 0.024" (0.60mm)
  • Mounting Type: Surface Mount
  • Contact Finish: Gold
  • Packaging: Tape & Reel
  • Height Above Board: 0.089" (2.26mm)
  • Mated Stacking Heights: 3mm and 4mm
  • MSL Level: 1
  • HTSUS: 8536.69.4040
  • Status: Active
