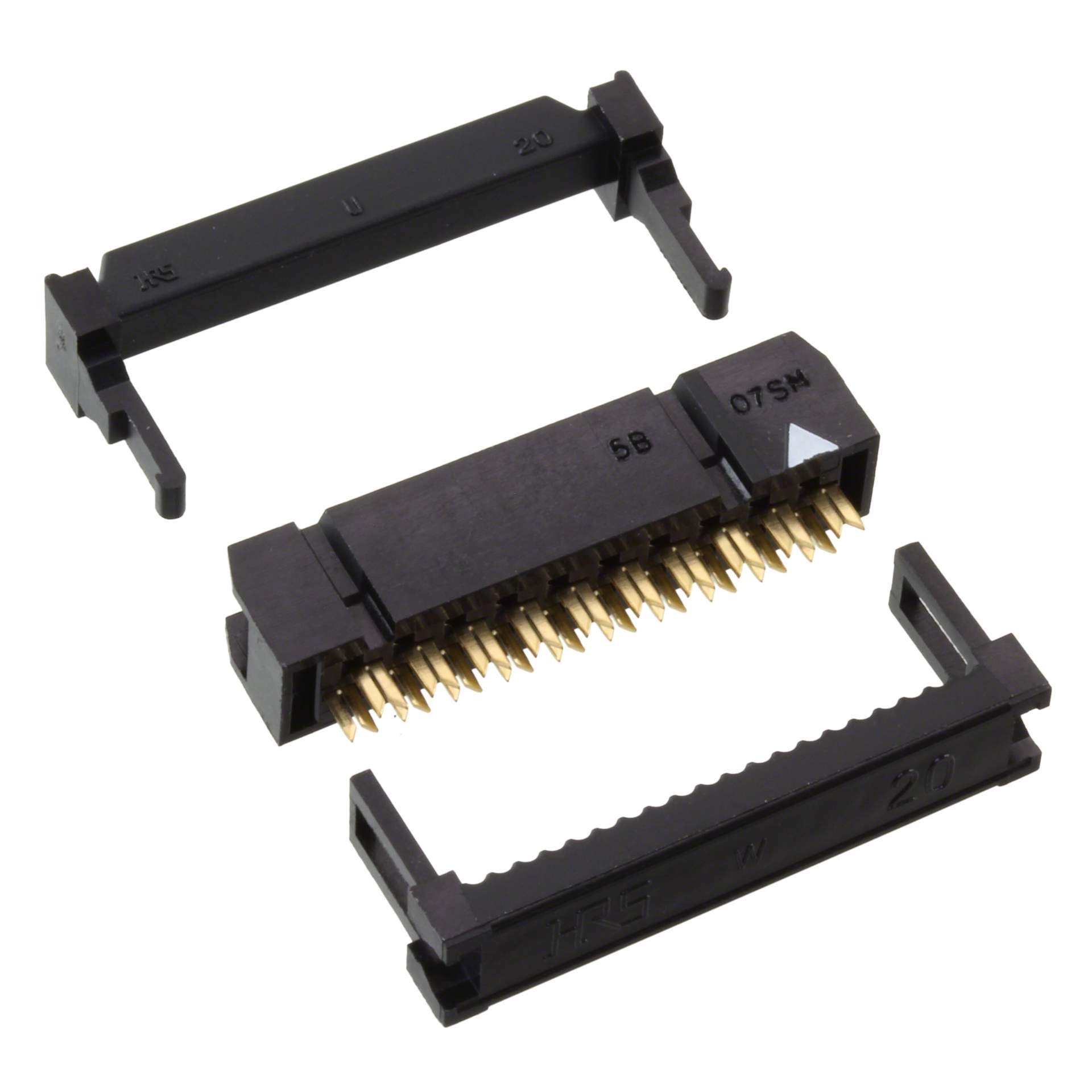

Same model may have multiple batches, images only for reference.

HIF3BA-20D-2.54R

Name: HIF3BA-20D-2.54R
Brand: Hirose Electric Co Ltd
SKU: 1382230
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	HIF3BA-20D-2.54R
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN SOCKET 20POS IDC 28AWG GOLD / 20 Position Rectangular Socket Connector IDC Gold 28 AWG
Datasheet	HIF3BA-20D-2.54R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Free Hanging, Panel Mount
Mfr	Hirose Electric Co Ltd
Series	HIF3B
Package	Bulk
Product Status	Obsolete
Connector Type	Socket
Contact Type	Female Socket
Number of Positions	20
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Fastening Type	-
Cable Termination	IDC
Wire Type	Ribbon Cable
Wire Gauge	28 AWG
Features	Feed Through, Polarizing Key, Strain Relief
Contact Finish	Gold
Contact Finish Thickness	8.00µin (0.203µm)
Color	Black
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Standard Package	100 pcs
Win Source Part Number	1382230-HIF3BA-20D-2.54R
Ultra Librarian 3D Model	Ultra Librarian HIF3BA-20D-2.54R CAD Model

Alternative Products

Description

The 1382230-HIF3BA-20D-2.54R is a free-hanging, panel mount rectangular connector from Hirose Electric Co Ltd.

Series: HIF3B
Positions: 20
Pitch: 0.100" (2.54mm)
Color: Black
Features: Feed-Through, Polarizing Key, Strain Relief
Contact Type: Socket
Contact Gender: Female Sockets
Number of Rows: 2
Row Spacing: 0.100" (2.54mm)
Contact Finish: Gold
Contact Finish Thickness: 8.00µin (0.203µm)
Wire Gauge: 28 AWG (Ribbon Cable)
Termination: IDC
Package: Bulk
Standard Package: 100 Pieces
ECCN: EAR99
