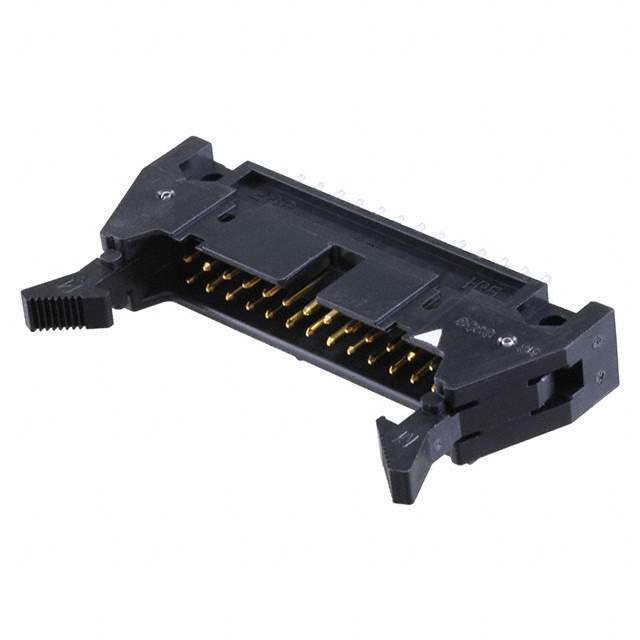

HIF3BA-26PA-2.54DSA(71) Real Image
Same model may have multiple batches, images only for reference.

HIF3BA-26PA-2.54DSA(71)

Part No HIF3BA-26PA-2.54DSA(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER VERT 26POS 2.54MM / Connector Header Through Hole 26 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series HIF3B
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.236" (6.00mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.657" (16.70mm)
Insulation Height 0.701" (17.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A
Voltage Rating 200V
Contact Finish Thickness - Post 78.7µin (2.00µm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 610-0115-9-71,H125739,HIF3BA-26PA-2.54DSA(71)-ND
Standard Package 120
Win Source Part Number 1226916-HIF3BA-26PA-2.54DSA(71)
Ultra Librarian 3D Model Ultra Librarian HIF3BA-26PA-2.54DSA(71) CAD Model

Description

The Hirose Electric Co Ltd HIF3BA-26PA-2.54DSA(71) is an obsolete product.

  • Description: connector with 26 male pin contacts
  • Connector Style: board to cable/wire style
  • Pitch: 0.100" (2.54mm)
  • Contact Finish (Mating): gold with a thickness of 8.00µin (0.203µm)
  • Contact Finish (Post): tin with a thickness of 78.7µin (2.00µm)
  • Voltage Rating: 200V
  • Current Rating: 1A
